Mainland China, Malaysia, Mexico, Taiwan, Thailand
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Texas Instruments
YTEOL:
15
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.004 µA
Bias Current-Max (IIB) @25C:
0.00006 µA
Common-mode Reject Ratio-Min:
65 dB
Common-mode Reject Ratio-Nom:
90 dB
Frequency Compensation:
YES
Input Offset Current-Max (IIO):
0.003 µA
Input Offset Voltage-Max:
3000 µV
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.9 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
YES
Moisture Sensitivity Level:
1
Neg Supply Voltage Limit-Max:
-19 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Slew Rate-Min:
2.1 V/us
Slew Rate-Nom:
3.4 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
0.35 mA
Supply Voltage Limit-Max:
19 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIFET
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
2000
Voltage Gain-Min:
10000
Wideband:
NO
Width:
3.9 mm
TLE2061IDR Frequently Asked Questions (FAQs)
Texas Instruments recommends a star-grounded layout, with the op-amp's inputs and outputs connected to the ground plane through separate traces. This helps to reduce noise and electromagnetic interference (EMI). Additionally, it's essential to keep the input and output traces short and away from each other to prevent coupling.
When selecting resistors for the feedback network, consider the op-amp's input impedance, output impedance, and the desired gain. Choose resistors with low tolerance (e.g., 1%) and a temperature coefficient of resistance (TCR) that matches the op-amp's TCR. For high-gain applications, use resistors with low noise and high stability.
The maximum power dissipation for the TLE2061IDR is 670 mW. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is within the recommended maximum to prevent overheating and damage to the device.
Yes, the TLE2061IDR can be used in a single-supply configuration. To do so, connect the negative supply pin (V-) to ground, and use a voltage divider or a reference voltage to set the input common-mode voltage. This allows the op-amp to operate from a single supply voltage, but be aware that the output voltage swing will be reduced.
To protect the TLE2061IDR from ESD and overvoltage, use ESD protection devices such as TVS diodes or ESD protection arrays on the input and output pins. Additionally, add voltage clamps or overvoltage protection circuits to prevent voltage excursions beyond the recommended maximum ratings. Follow proper handling and storage procedures to prevent ESD damage during assembly and testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2061IDR Overview

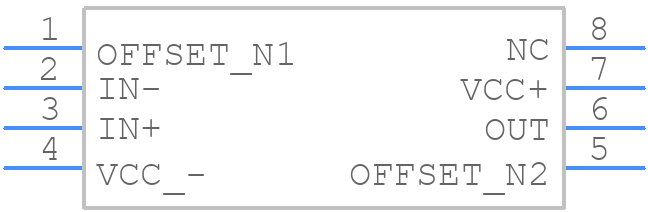

Use the download button to access the TLE2061IDR schematic symbol, PCB footprint, and 3D model.
