Mainland China, Malaysia, Mexico, Taiwan, Thailand
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Texas Instruments
YTEOL:
15
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.002 µA
Bias Current-Max (IIB) @25C:
0.00006 µA
Common-mode Reject Ratio-Min:
65 dB
Common-mode Reject Ratio-Nom:
90 dB
Frequency Compensation:
YES
Input Offset Current-Max (IIO):
0.0008 µA
Input Offset Voltage-Max:
4000 µV
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e4
Length:
8.65 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
YES
Moisture Sensitivity Level:
1
Neg Supply Voltage Limit-Max:
-19 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
4
Number of Terminals:
14
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Slew Rate-Min:
2.5 V/us
Slew Rate-Nom:
3.4 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
1.4 mA
Supply Voltage Limit-Max:
19 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIFET
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
2000
Voltage Gain-Min:
10000
Wideband:
NO
Width:
3.9 mm
TLE2064ACDR Frequently Asked Questions (FAQs)
The maximum power dissipation of the TLE2064ACDR is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 670mW at 25°C. However, it's recommended to check the thermal resistance and power dissipation calculations in the datasheet to ensure safe operation.
While the TLE2064ACDR is an op-amp, it's not recommended to use it as a comparator. Op-amps are designed for linear amplification, and their output stages are not optimized for high-speed switching. Using an op-amp as a comparator can lead to oscillations, latch-up, or other unintended behavior. Instead, use a dedicated comparator IC designed for high-speed switching and hysteresis.
To ensure stability in your TLE2064ACDR-based circuit, follow best practices for op-amp circuit design, such as: (1) using a stable voltage supply, (2) minimizing parasitic capacitance and inductance, (3) using a suitable compensation capacitor, (4) avoiding high-gain configurations, and (5) simulating your circuit using SPICE models or other simulation tools.
The TLE2064ACDR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Be sure to check the datasheet for temperature-related specifications, such as offset voltage drift and input bias current, to ensure your circuit operates within acceptable limits.
To minimize noise and interference in your TLE2064ACDR-based circuit, follow good PCB layout practices, such as: (1) separating analog and digital grounds, (2) using a solid ground plane, (3) keeping signal traces short and away from noise sources, (4) using shielding or guard rings around sensitive nodes, and (5) avoiding vias and layer changes under sensitive components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2064ACDR Overview

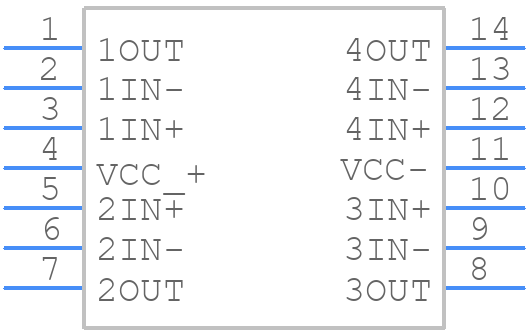

Use the download button to access the TLE2064ACDR schematic symbol, PCB footprint, and 3D model.
