The maximum power dissipation of the TLE2064ACN is dependent on the package type and ambient temperature. For the DIP package, the maximum power dissipation is 840mW at 25°C. For the SOIC package, it is 670mW at 25°C. It is essential to ensure that the device does not exceed these power dissipation limits to prevent overheating and potential damage.
To ensure stability in a unity-gain configuration, it is recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations. Additionally, ensure that the layout is well-designed, with short leads and minimal parasitic capacitance.
The recommended input impedance for the TLE2064ACN is greater than 1kΩ. This is to ensure that the input bias current does not significantly affect the input signal. If the input impedance is lower than 1kΩ, it may be necessary to add a voltage follower or a buffer stage to prevent signal attenuation.
While the TLE2064ACN can be used as a comparator, it is not recommended due to its relatively slow slew rate (0.5V/μs) and limited output current drive capability (±20mA). Texas Instruments offers dedicated comparator devices, such as the LM339 or LM2901, which are better suited for comparator applications.
To prevent electrostatic discharge (ESD) damage, it is essential to handle the TLE2064ACN with care. Use an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static package. When handling the device, avoid touching the pins, and use a soldering iron with an anti-static tip. Additionally, consider adding ESD protection diodes or resistors to the input and output pins in the circuit design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2064ACN Overview

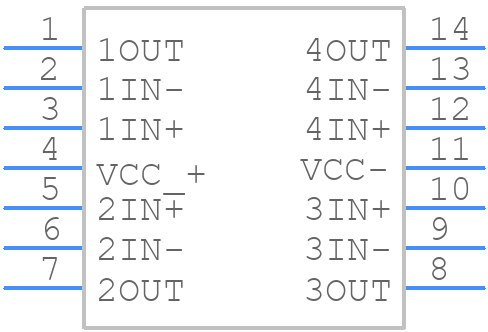

Use the download button to access the TLE2064ACN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
