Mainland China, Malaysia, Mexico, Taiwan, Thailand
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Texas Instruments
YTEOL:
15
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.004 µA
Bias Current-Max (IIB) @25C:
0.00006 µA
Common-mode Reject Ratio-Min:
65 dB
Common-mode Reject Ratio-Nom:
90 dB
Frequency Compensation:
YES
Input Offset Current-Max (IIO):
0.002 µA
Input Offset Voltage-Max:
6000 µV
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e4
Length:
8.65 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
YES
Moisture Sensitivity Level:
1
Neg Supply Voltage Limit-Max:
-19 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
4
Number of Terminals:
14
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Slew Rate-Min:
2.1 V/us
Slew Rate-Nom:
3.4 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
1.38 mA
Supply Voltage Limit-Max:
19 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIFET
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
2000
Voltage Gain-Min:
10000
Wideband:
NO
Width:
3.9 mm
TLE2064IDR Frequently Asked Questions (FAQs)
The maximum power dissipation of the TLE2064IDR is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
Yes, the TLE2064IDR is rated for operation from -40°C to 125°C, making it suitable for high-temperature applications. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not be exceeded.
To ensure stability, it's essential to follow proper compensation techniques, such as adding a capacitor in the feedback loop or using a resistor in series with the feedback capacitor. Additionally, the datasheet provides guidance on stability analysis and compensation methods.
The input impedance of the TLE2064IDR is typically around 1MΩ, but it can vary depending on the specific application and operating conditions. It's essential to consider the input impedance when designing the circuit to ensure proper signal transmission.
While the TLE2064IDR can be used as a comparator, it's not the most suitable device for this application. The device is optimized for linear amplifier applications, and its performance as a comparator may not be ideal. Texas Instruments offers dedicated comparator devices, such as the LM339, which are better suited for comparator applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2064IDR Overview

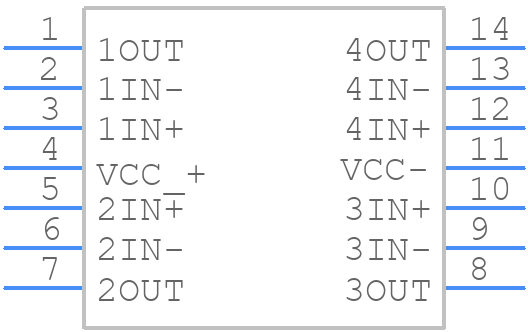

Use the download button to access the TLE2064IDR schematic symbol, PCB footprint, and 3D model.
