Texas Instruments recommends following good PCB layout practices, such as separating analog and digital grounds, using a solid ground plane, and keeping signal traces short and direct. Additionally, it's essential to decouple the power supply pins with capacitors and to use a low-ESR capacitor for the compensation pin (pin 8).
The compensation capacitor value depends on the specific application and the desired frequency response. As a general rule, a 10nF to 100nF capacitor is a good starting point. For more information, refer to the datasheet's application section and the TI Op-Amp Compensation Calculator tool.
The maximum power dissipation for the TLE2064MDR is dependent on the ambient temperature and the package type. For the MDR package, the maximum power dissipation is approximately 1.4W at 25°C. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, the TLE2064MDR can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the input signal. Additionally, consider the output impedance and the capacitive load driving capability to ensure stability and prevent oscillations.
The TLE2064MDR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-safe materials, handle the devices by the body or pins, and avoid touching the pins or leads.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2064MDR Overview

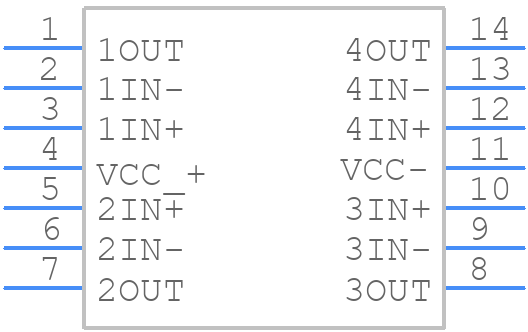

Use the download button to access the TLE2064MDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
