The maximum power dissipation of the TLE2071ACDR is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 670mW at 25°C. However, it's recommended to check the thermal resistance and power dissipation calculations in the datasheet to ensure safe operation.
While the TLE2071ACDR is an op-amp, it's not recommended to use it as a comparator. The datasheet doesn't provide specifications for comparator operation, and the device may not meet the required performance and reliability standards for comparator applications. Instead, consider using a dedicated comparator IC.
To minimize noise and ensure optimal performance, follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and keeping signal traces short and away from noise sources. Additionally, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane. TI provides a PCB layout guide in the datasheet that can be used as a reference.
The recommended capacitor value for decoupling the power supply is not specified in the datasheet. However, a general rule of thumb is to use a 0.1uF to 1uF ceramic capacitor in parallel with a 10uF to 22uF electrolytic capacitor. The exact value depends on the specific application, power supply quality, and noise requirements.
The TLE2071ACDR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to check the datasheet's thermal characteristics and ensure that the device is operated within its recommended specifications. Additionally, consider using a heat sink or thermal management techniques to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2071ACDR Overview

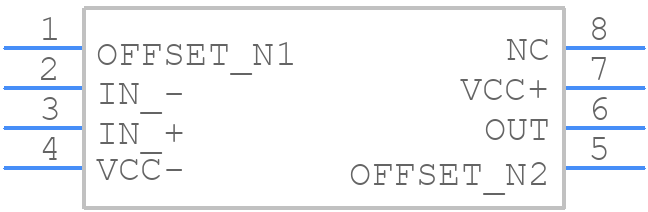

Use the download button to access the TLE2071ACDR schematic symbol, PCB footprint, and 3D model.
