The maximum power dissipation of the TLE2074ACDW is dependent on the package type and ambient temperature. For the DW package, the maximum power dissipation is 1.4W at 25°C free-air temperature. However, it's recommended to check the thermal derating curves in the datasheet to ensure the device operates within safe limits.
While the TLE2074ACDW is an op-amp, it's not recommended to use it as a comparator. Op-amps are designed for linear amplification, and their output stages are not optimized for high-speed switching. Using an op-amp as a comparator can lead to oscillations, latch-up, or other unintended behavior. Instead, use a dedicated comparator IC designed for high-speed switching and hysteresis.
To ensure stability in your TLE2074ACDW-based circuit, follow these guidelines: 1) Use a minimum gain of 5 to avoid oscillations, 2) Ensure the feedback network is properly terminated, 3) Avoid capacitive loads, 4) Use a low-ESR capacitor for decoupling, and 5) Keep the layout clean and minimize parasitic inductances. Additionally, consult the datasheet for specific recommendations on compensation and stability analysis.
The input impedance of the TLE2074ACDW is typically around 1MΩ, but it can vary depending on the specific application and operating conditions. For accurate impedance matching, it's recommended to consult the datasheet and consider the input bias current, common-mode input impedance, and differential input impedance.
The TLE2074ACDW is rated for operation up to 125°C, but its performance may degrade at higher temperatures. Be sure to check the datasheet for temperature-related specifications, such as offset voltage drift, input bias current, and output voltage swing. Additionally, consider the package type and thermal management to ensure the device operates within safe limits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2074ACDW Overview

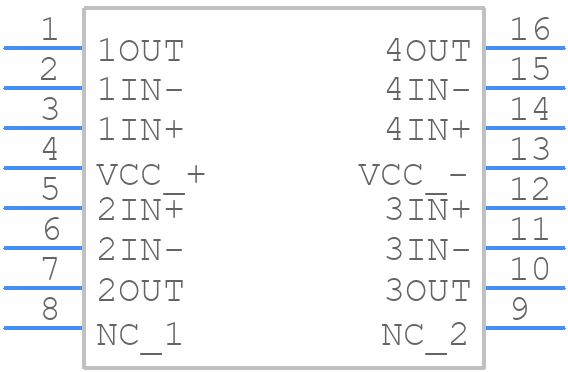

Use the download button to access the TLE2074ACDW schematic symbol, PCB footprint, and 3D model.
