The maximum power dissipation of the TLE2074AIN is dependent on the package type and ambient temperature. For the DIP package, the maximum power dissipation is 840mW at 25°C. For the SOIC package, it is 670mW at 25°C. It is essential to ensure that the device does not exceed these power dissipation limits to prevent overheating and potential damage.
To ensure stability in a unity-gain configuration, it is recommended to add a capacitor (typically 10-100pF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations. Additionally, it is essential to ensure that the layout is well-designed, with short leads and minimal parasitic capacitance.
The recommended input impedance for the TLE2074AIN is greater than 1kΩ. This is to ensure that the input bias current does not significantly affect the operation of the op-amp. If the input impedance is lower than 1kΩ, it may be necessary to add a voltage follower or a buffer stage to isolate the input signal.
While the TLE2074AIN can be used as a comparator, it is not recommended due to its relatively slow slew rate (0.5V/μs) and limited output current drive capability (±20mA). Texas Instruments offers dedicated comparator devices, such as the LM339 or LM2901, which are better suited for comparator applications.
The TLE2074AIN has internal ESD protection diodes, but it is still essential to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, or ESD bag to prevent static electricity from damaging the device. Additionally, it is recommended to add external ESD protection devices, such as TVS diodes or ESD arrays, to the input and output pins of the op-amp.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2074AIN Overview

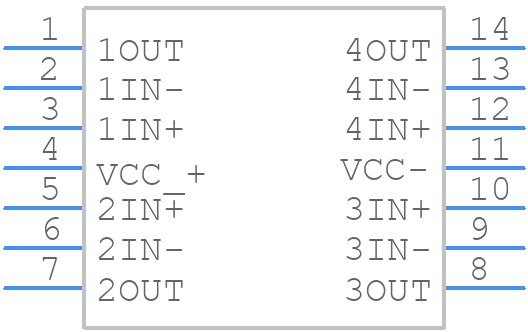

Use the download button to access the TLE2074AIN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
