The maximum power dissipation of the TLE2081AID is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 1.4W at 25°C. However, it's essential to calculate the power dissipation based on the specific application and ensure it's within the recommended limits to prevent overheating.
To ensure stability in a unity-gain configuration, it's crucial to follow proper layout and decoupling techniques. Use a low-ESR capacitor (e.g., 0.1 μF) between the power supply pins (VCC- and VCC+) and the GND pin. Additionally, keep the input and output traces short and away from noise sources, and use a ground plane to reduce noise coupling.
The recommended input impedance for the TLE2081AID is greater than 1 kΩ to ensure optimal performance. Lower input impedances can lead to reduced bandwidth and increased distortion. If a lower input impedance is required, consider using an input buffer or a voltage follower configuration.
While the TLE2081AID can be used as a comparator, it's not the most suitable choice. The device is designed as a general-purpose op-amp, and its performance as a comparator may not be optimal. If you need a comparator, consider using a dedicated comparator IC, such as the LM339 or TLV7031, which are designed specifically for that purpose.
To handle ESD protection, follow proper handling and storage procedures for the device. Use an anti-static wrist strap or mat when handling the device, and store it in an anti-static bag or container. Additionally, consider adding external ESD protection devices, such as TVS diodes or ESD protection arrays, to the input and output pins of the TLE2081AID.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2081AID Overview

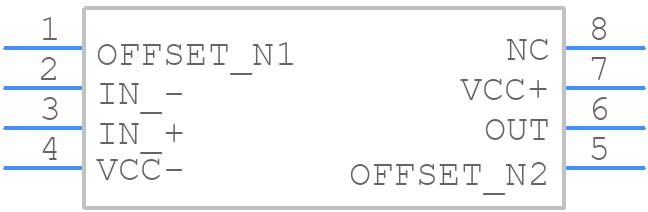

Use the download button to access the TLE2081AID schematic symbol, PCB footprint, and 3D model.
