The maximum power dissipation of the TLE2082CP is dependent on the package type and ambient temperature. For the PDIP package, the maximum power dissipation is 1.4W at 25°C. For the SOIC package, it is 1.2W at 25°C. However, it is recommended to derate the power dissipation based on the ambient temperature to ensure reliable operation.
To ensure stability in a unity-gain configuration, it is recommended to add a 10nF to 22nF capacitor between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations.
To minimize noise and EMI, it is recommended to follow good PCB layout practices such as keeping the input and output traces separate, using a solid ground plane, and avoiding long traces that can act as antennas. Additionally, it is recommended to place a 0.1uF decoupling capacitor between the power supply pins and the ground plane, and to use a low-ESR capacitor for the power supply bypassing.
While the TLE2082CP can be used as a comparator, it is not recommended due to its relatively slow slew rate and limited output current. The TLE2082CP is designed as a general-purpose op-amp and is better suited for applications that require a high gain-bandwidth product and low noise. If a comparator is needed, it is recommended to use a dedicated comparator IC such as the LM339 or the TLV7031.
The input bias current of the TLE2082CP is typically around 45pA, which is relatively low. However, in high-impedance circuits, this current can cause significant voltage offsets. To handle the input bias current, it is recommended to use a high-impedance input source, such as a voltage divider or a buffer amplifier, and to ensure that the input impedance is matched to minimize the effects of the input bias current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2082CP Overview

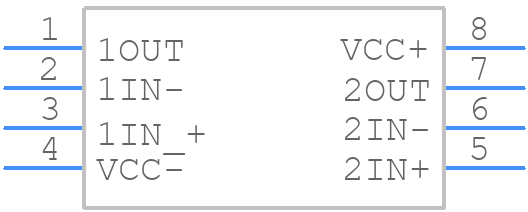

Use the download button to access the TLE2082CP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
