Texas Instruments recommends a star-ground configuration, with the op-amp's ground pin connected to a central ground point. Additionally, keep the input and output traces short and away from noise sources, and use a ground plane to reduce EMI.
To minimize the effects of high input bias current, use a low-impedance source, such as a voltage divider or a buffer amplifier, and consider using a bias current cancellation technique. Additionally, ensure that the input signal is within the op-amp's common-mode range.
The maximum power dissipation of the TLE2084ACDW is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is approximately 1.4W at 25°C. However, it's recommended to derate the power dissipation based on the operating temperature and package type.
While the TLE2084ACDW can be used as a comparator, it's not recommended due to its limited output current and slow slew rate. Texas Instruments recommends using a dedicated comparator, such as the LM339 or LM393, for comparator applications.
To ensure stability, ensure that the feedback loop has a sufficient phase margin and gain margin. Use a compensation capacitor, if necessary, and consider using a phase-lead or phase-lag compensation technique. Additionally, ensure that the op-amp is operated within its recommended frequency range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2084ACDW Overview

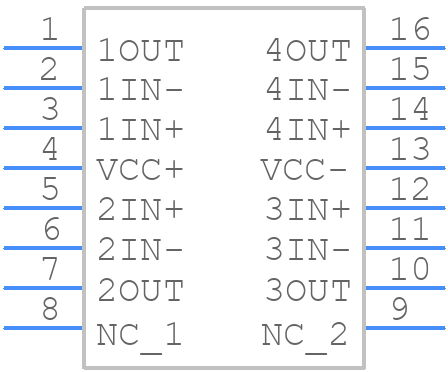

Use the download button to access the TLE2084ACDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
