The maximum power dissipation of the TLE2141CD is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 1.4W at 25°C. However, it's essential to calculate the power dissipation based on the specific application and ensure it's within the safe operating area.
To ensure stability in high-gain configurations, it's crucial to follow proper layout and compensation techniques. This includes using a low-ESR capacitor for power supply decoupling, minimizing parasitic capacitance, and adding a compensation capacitor (if necessary) as described in the datasheet.
The recommended input impedance for the TLE2141CD is greater than 1 kΩ to ensure optimal performance. Lower input impedances can lead to reduced input impedance, increased noise, and potential oscillations.
While the TLE2141CD can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (0.5 V/μs) and limited output current (±20 mA). Texas Instruments offers dedicated comparator devices, such as the LM339 or TLV7031, which are more suitable for comparator applications.
To protect the TLE2141CD from overvoltage conditions, it's recommended to use voltage clamping devices, such as transient voltage suppressors (TVS) or zener diodes, to limit the voltage at the input pins. Additionally, ensure that the power supply voltage does not exceed the maximum rating of 36 V.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2141CD Overview

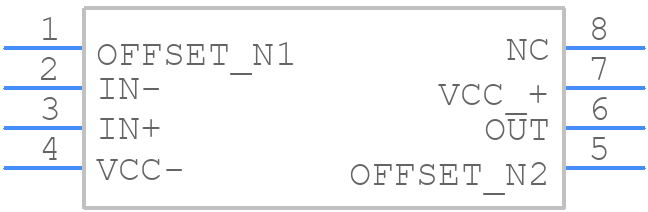

Use the download button to access the TLE2141CD schematic symbol, PCB footprint, and 3D model.
