The maximum power dissipation of the TLE2144AMJB is dependent on the package type and thermal resistance. For the DIP package, the maximum power dissipation is approximately 1.4W. However, it's recommended to check the thermal resistance and power dissipation calculations in the datasheet to ensure safe operation.
To ensure stability in high-gain configurations, it's essential to follow proper layout and compensation techniques. This includes using a low-ESR capacitor for power supply decoupling, minimizing parasitic capacitance and inductance, and using a compensation capacitor (if necessary) as described in the datasheet.
The recommended input impedance for the TLE2144AMJB is dependent on the specific application. However, as a general rule, it's recommended to keep the input impedance below 1kΩ to minimize noise and ensure proper operation.
While the TLE2144AMJB can be used as a comparator, it's not recommended due to its relatively slow slew rate and limited output current. Texas Instruments offers dedicated comparator devices, such as the LM339 or LM2901, which are better suited for comparator applications.
To protect the TLE2144AMJB from ESD damage, it's recommended to follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, consider adding ESD protection devices, such as TVS diodes or ESD arrays, to the circuit design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2144AMJB Overview

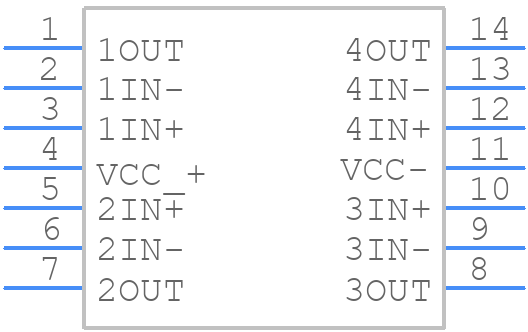

Use the download button to access the TLE2144AMJB schematic symbol, PCB footprint, and 3D model.
