A good PCB layout for the TLE2144MDWREP involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the TLE2144MDWREP operates within its recommended operating conditions, make sure to provide a stable power supply voltage between 2.7V and 36V, and operate the device within the recommended temperature range of -40°C to 125°C. Also, ensure that the device is properly decoupled and that the input and output pins are not subjected to excessive voltage or current.
When using the TLE2144MDWREP in high-power applications, it's essential to consider thermal management to prevent overheating. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
To troubleshoot issues with the TLE2144MDWREP, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the input and output pins are properly terminated and that the device is properly decoupled. If the issue persists, check for any layout or routing issues on the PCB, and consider using a scope or simulation tools to analyze the circuit behavior.
The TLE2144MDWREP and OPA2144 are both high-performance op-amps from Texas Instruments, but they have some key differences. The TLE2144MDWREP has a higher slew rate and bandwidth, making it more suitable for high-frequency applications. The OPA2144, on the other hand, has a lower noise floor and is more suitable for low-noise applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2144MDWREP Overview

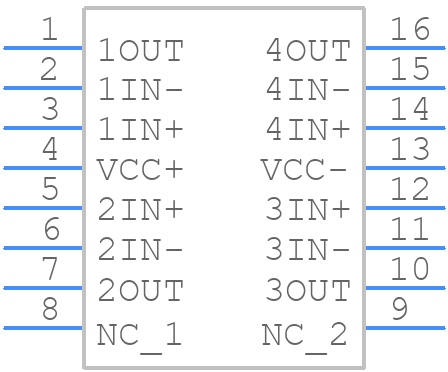

Use the download button to access the TLE2144MDWREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE21,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
