The TLE2426CP is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends placing the device close to the power supply, using short traces, and avoiding vias and right-angle bends. A solid ground plane and decoupling capacitors are also essential.
The TLE2426CP can generate high-frequency noise due to its high-speed switching. To mitigate this, use a ferrite bead or a common-mode choke in series with the input power line, and add decoupling capacitors between the input and output pins. Additionally, use a shielded enclosure and keep the device away from sensitive analog circuits.
The TLE2426CP has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and the output voltage may vary. It's essential to ensure proper thermal management and heat sinking to maintain reliable operation.
The TLE2426CP is a commercial-grade device, and its reliability and performance may not meet the requirements of high-reliability or aerospace applications. TI offers other devices with enhanced reliability and performance, such as the TLE2426QM, which is qualified for automotive and industrial applications.
To troubleshoot issues with the TLE2426CP, start by verifying the input voltage, output voltage, and current. Check for proper decoupling, layout, and thermal management. Use an oscilloscope to monitor the output voltage and current, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2426CP Overview

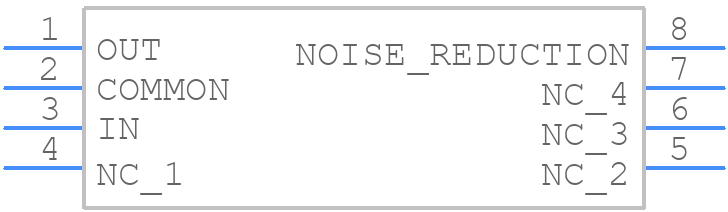

Use the download button to access the TLE2426CP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE24,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
