Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
The TLE2426QDRG4Q1 requires a bias voltage between 2.7V and 5.5V. Ensure that the bias voltage is stable and within the recommended range. Additionally, the device has a built-in voltage regulator, so it's essential to follow the recommended decoupling capacitor values and placement to minimize noise and ensure stable operation.
The TLE2426QDRG4Q1 has an operating temperature range of -40°C to 125°C. However, it's essential to consider the device's thermal characteristics and ensure proper heat dissipation to prevent overheating, especially in high-power applications.
Yes, the TLE2426QDRG4Q1 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a high-reliability process. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application.
When troubleshooting issues with the TLE2426QDRG4Q1, start by verifying the device's bias voltage, input signals, and output signals. Use an oscilloscope to check for signal integrity and noise. Also, ensure that the device is properly decoupled and that the PCB layout is correct. If issues persist, consult the datasheet and application notes or contact Texas Instruments' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2426QDRG4Q1 Overview

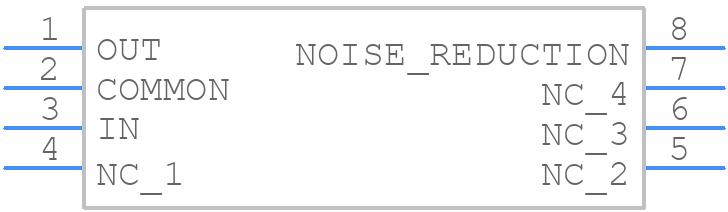

Use the download button to access the TLE2426QDRG4Q1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE24,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
