TLE4252G footprint, schematic symbol and 3D model by Infineon

Symbol

click to zoom

PCB Footprints

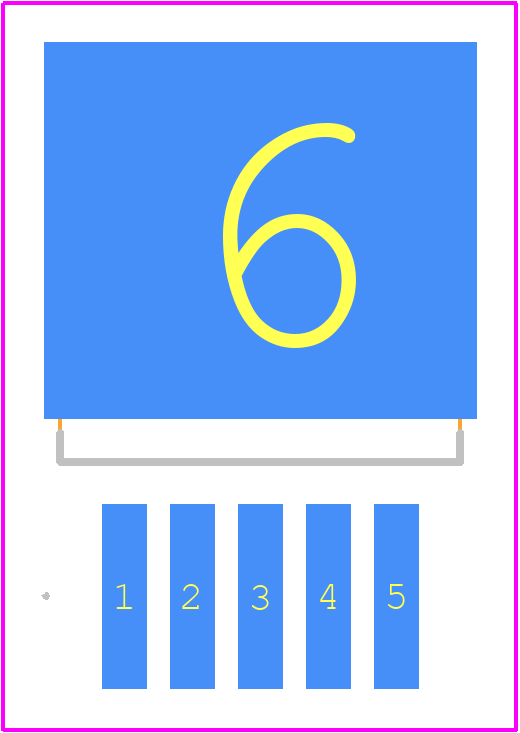

TLE4252G - Infineon PCB footprint - Other - Other - TLE4252G-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLE4252G
Part Number TLE4252G
Manufacturer Infineon
Pin Count 6
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TLE4252G-2
Released Date Feb 17, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLE4252G Details

Manufacturer Part Number:
TLE4252G
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
D2PAK
Package Description:
TO-263,
Pin Count:
4
Reach Compliance Code:
Not Compliant
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Infineon Technologies AG
YTEOL:
0
Analog IC - Other Type:
POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code:
R-PSSO-G5
JESD-609 Code:
e3
Length:
10 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
5
Package Body Material:
PLASTIC/EPOXY
Package Code:
TO-263
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Qualification Status:
Not Qualified
Supply Voltage-Max (Vsup):
40 V
Supply Voltage-Min (Vsup):
3.5 V
Supply Voltage-Nom (Vsup):
13.5 V
Surface Mount:
YES
Terminal Finish:
TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.7 mm
Terminal Position:
SINGLE
Width:
9.25 mm

TLE4252G Frequently Asked Questions (FAQs)

Infineon provides a recommended PCB layout in the application note AN215 'Layout Recommendations for TLE4252G' which includes guidelines for component placement, routing, and thermal management.
Proper thermal management is crucial for the TLE4252G. Ensure good heat dissipation by using a heat sink, thermal interface material, and a PCB design that allows for good airflow. The thermal resistance of the package (RthJP) is specified in the datasheet.
The maximum allowed voltage on the VCC pin is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
The TLE4252G is rated for operation up to 150°C (TJ). However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for guidance on high-temperature operation.
Infineon provides a troubleshooting guide in the application note AN216 'Troubleshooting Guide for TLE4252G' which covers common issues and their solutions. Additionally, consult the datasheet and contact Infineon support for further assistance.

Trust Checks

Community Provided

System Verified

Community Approved

TLE4252G Overview

Use the download button to access the TLE4252G schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TLE42, or try a keyword search, such as Power Management Circuits
