A good PCB layout for the TLE4254GA involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded cable for the output and keeping the output cable away from the input cable can help reduce EMI.
The TLE4254GA requires a single 5V power supply. It's essential to ensure that the power supply is stable and clean. Power sequencing is not critical, but it's recommended to power up the device after the power supply has reached its nominal value. A soft-start circuit can be used to reduce inrush currents during power-up.
The maximum allowed voltage on the output pins is 5.5V. To protect the device from overvoltage, it's recommended to use a voltage clamp or a zener diode to limit the voltage to 5.5V. Additionally, using a TVS (transient voltage suppressor) diode can help protect the device from voltage spikes and transients.
To troubleshoot issues with the TLE4254GA, start by checking the power supply and ensuring it's stable and within the recommended range. Check for proper grounding and decoupling. Common failure modes include overheating, overvoltage, and electrical overstress. Use an oscilloscope to check the output waveforms and verify that they match the expected behavior.
The thermal resistance of the TLE4254GA is 35°C/W (junction-to-ambient). To ensure proper thermal management, use a heat sink or a thermal pad, and ensure good airflow around the device. Keep the device away from other heat sources, and avoid blocking airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE4254GA Overview

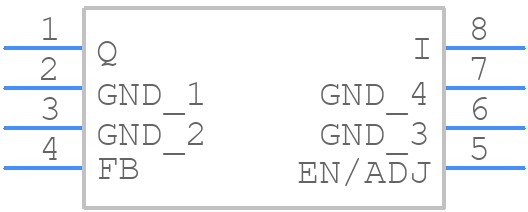

Use the download button to access the TLE4254GA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE42,
or try a keyword search, such as Linear Regulator ICs
