TLE42632ESXUMA1 footprint, schematic symbol and 3D model by Infineon

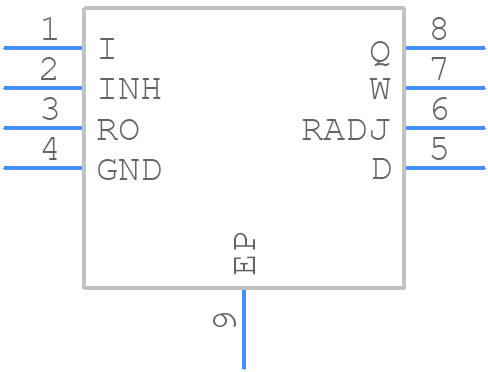

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLE42632ESXUMA1
Part Number TLE42632ESXUMA1
Manufacturer Infineon
Pin Count 9
Part Category Undefined or Miscellaneous
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PG-DSO-8
Released Date Jul 15, 2025
Last Modified Date Jul 15, 2025 3:53 AM UTC
Pinout / Pin List Click Here (Member Only)

TLE42632ESXUMA1 Details

Manufacturer Part Number:
TLE42632ESXUMA1
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
GREEN, PLASTIC, MS-012BA, DSO-8
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
53 Weeks, 1 Day
Manufacturer:
Infineon Technologies AG
YTEOL:
6.4
Adjustability:
FIXED
Dropout Voltage1-Max:
0.6 V
Dropout Voltage1-Nom:
0.5 V
Input Voltage Absolute-Max:
45 V
Input Voltage-Max:
45 V
Input Voltage-Min:
5.5 V
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Line Regulation-Max:
0.025%
Load Regulation-Max:
0.025%
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature TJ-Max:
150 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.15 A
Output Voltage1-Max:
5.1 V
Output Voltage1-Min:
4.9 V
Output Voltage1-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HLSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.7 mm
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Voltage Tolerance-Max:
2%
Width:
3.9 mm

TLE42632ESXUMA1 Frequently Asked Questions (FAQs)

A good PCB layout for the TLE42632ESXUMA1 involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper cooling, make sure to provide adequate airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures or high currents. The thermal resistance of the device is 25 K/W, so a heat sink with a thermal resistance of 10 K/W or lower is recommended.
The maximum allowed voltage on the enable pin (EN) of the TLE42632ESXUMA1 is 6 V. Exceeding this voltage may damage the device.
Yes, the TLE42632ESXUMA1 is designed to meet the requirements of automotive EMC standards such as IEC 62228 and CISPR 25. However, it's still important to follow proper PCB layout and design practices to minimize electromagnetic interference (EMI).
The recommended input capacitor value for the TLE42632ESXUMA1 is 10 μF to 22 μF, with a voltage rating of at least 25 V. A ceramic capacitor with an X7R or X5R dielectric is recommended.
