TLE42672GATMA2 - Infineon

Description: INFINEON - TLE42672GATMA2 - LDO, AEC-Q100, FIXED, 5V, 0.4A, TO-220-7

Download TLE42672GATMA2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLE42672GATMA2 - Infineon - PCB symbol
click to zoom
PCB Footprints

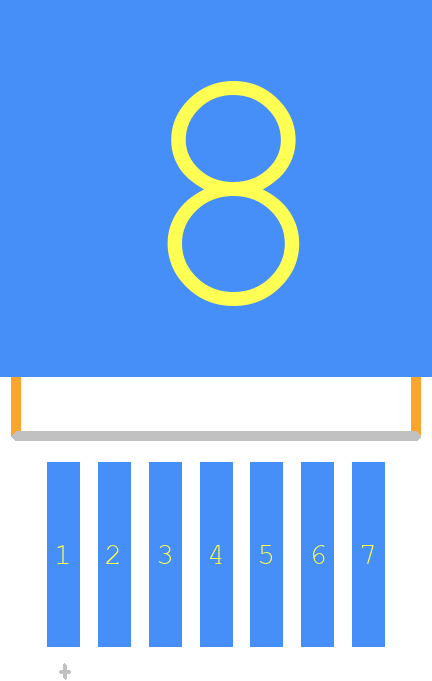

TLE42672GATMA2 - Infineon PCB footprint - Other - Other - PG-TO263-7-1
click to zoom
3D Models
TLE42672GATMA2 - Infineon - 3D model - Other - PG-TO263-7-1
click to zoom

TLE42672GATMA2 Details

  • Manufacturer Part Number:

    TLE42672GATMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TO-220, 7 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Dropout Voltage1-Max:

    0.6 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    5.5 V

  • JESD-30 Code:

    R-PSSO-G7

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.4 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    4.5 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Voltage Tolerance-Max:

    2%

  • Width:

    9.25 mm

TLE42672GATMA2 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN2018-01, which includes guidelines for thermal vias, copper thickness, and component placement to minimize thermal resistance and ensure reliable operation.
  • Infineon recommends following the guidelines in their application note AN2017-12, which provides information on PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure EMC compliance.
  • The maximum allowed voltage drop across the TLE42672GATMA2 is 0.5 V, as specified in the datasheet. Exceeding this voltage drop may affect the device's performance and reliability.
  • The TLE42672GATMA2 is rated for operation up to 150°C, but Infineon recommends derating the device's performance and ensuring proper thermal management to prevent overheating and ensure reliable operation in high-temperature environments.
  • Infineon provides a troubleshooting guide in their application note AN2019-03, which covers common issues, diagnostic techniques, and repair procedures for the TLE42672GATMA2.
