TLE4473GV552AUMA2 footprint, schematic symbol and 3D model by Infineon

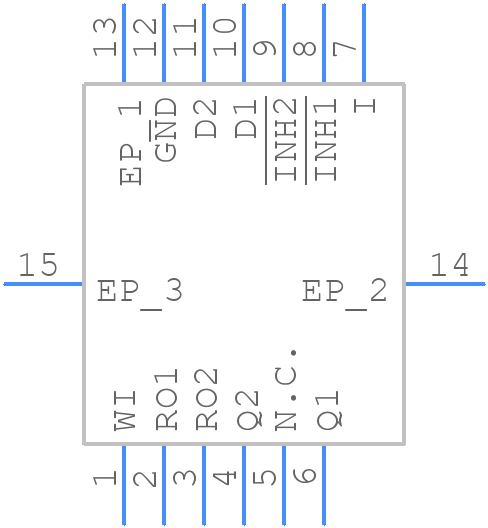

Symbol

click to zoom

PCB Footprints

TLE4473GV552AUMA2 - Infineon PCB footprint - Other - Other - TLE4473GV552AUMA2-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLE4473GV552AUMA2
Part Number TLE4473GV552AUMA2
Manufacturer Infineon
Pin Count 15
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TLE4473GV552AUMA2-3
Released Date Feb 22, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLE4473GV552AUMA2 Details

Manufacturer Part Number:
TLE4473GV552AUMA2
Part Life Cycle Code:
Active
Package Description:
GREEN, PLASTIC, SOP-12
Country Of Origin:
Indonesia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
16 Weeks
Manufacturer:
Infineon Technologies AG
YTEOL:
7.7
Dropout Voltage1-Max:
0.6 V
Dropout Voltage1-Nom:
0.3 V
Dropout Voltage2-Max:
0.6 V
Input Voltage-Max:
42 V
Input Voltage-Min:
5.6 V
JESD-30 Code:
R-PDSO-G12
Length:
7.5 mm
Load Regulation-Max:
0.05%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
12
Operating Temperature TJ-Max:
150 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.3 A
Output Current2-Max:
0.19 A
Output Voltage1-Max:
5.125 V
Output Voltage1-Min:
4.875 V
Output Voltage1-Nom:
5 V
Output Voltage2-Max:
5.1 V
Output Voltage2-Min:
4.9 V
Output Voltage2-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SOP12,.4,40
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Regulator Type:
FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Seated Height-Max:
2.6 mm
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
1 mm
Terminal Position:
DUAL
Voltage Tolerance-Max:
2.5%
Width:
6.4 mm

TLE4473GV552AUMA2 Frequently Asked Questions (FAQs)

Infineon provides a recommended PCB layout in the application note AN2014-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The thermal shutdown feature is designed to protect the device from overheating. When the junction temperature exceeds 170°C, the device will shut down. To handle this, ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider implementing a thermal monitoring and shutdown circuit in your design.
Although the datasheet specifies a maximum input voltage of 5.5V, it's essential to note that the device can tolerate up to 6V for a short duration (less than 100ms) without damage. However, it's recommended to keep the input voltage within the specified range to ensure reliable operation.
The TLE4473GV552AUMA2 is rated for operation up to 150°C. However, the device's performance and reliability may degrade at higher temperatures. If your application requires operation above 150°C, consider using a different device or implementing additional cooling measures.
To ensure EMC, follow the recommended PCB layout, use a shielded enclosure, and implement proper filtering and decoupling. Additionally, consider using a common-mode choke and TVS diodes to protect against electromagnetic interference (EMI).

Trust Checks

Expert Contribution

System Verified

Community Approved

TLE4473GV552AUMA2 Overview

Use the download button to access the TLE4473GV552AUMA2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TLE44, or try a keyword search, such as Linear Regulator ICs
