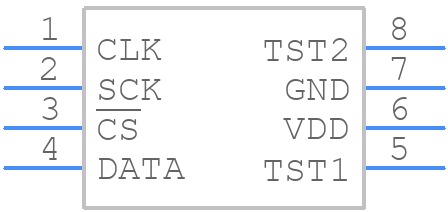

TLE5010 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE5010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8_2022
click to zoom
3D Models
TLE5010 - Infineon - 3D model - Small Outline Packages - PG-DSO-8_2022
click to zoom

TLE5010 Details

  • Manufacturer Part Number:

    TLE5010

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, PLASTIC, DSO-8

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    CMOS COMPATIBLE

  • Body Breadth:

    4 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    5 mm

  • Housing:

    PLASTIC

  • Hysteresis:

    30 mT

  • Magnetic Field Range-Max:

    45 mT

  • Magnetic Field Range-Min:

    25 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    20 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    -10 mA

  • Output Interface Type:

    SSC INTERFACE

  • Output Range:

    0.40-0.70V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,MAGNETORESISTIVE

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

TLE5010 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN201706 'TLE5010 PCB Layout Recommendations' which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TLE5010 has an internal calibration mechanism, but it may require external calibration for high-accuracy applications. Infineon provides a calibration guide in the application note AN201707 'TLE5010 Calibration Guide' which includes step-by-step instructions and software tools.
  • The TLE5010 has an operating temperature range of -40°C to 150°C, but the accuracy and reliability may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for specific temperature-related limitations and guidelines.
  • Yes, the TLE5010 is designed to be robust against mechanical stress and vibration. However, it's recommended to follow the guidelines in the application note AN201708 'TLE5010 Mechanical Stress and Vibration' to ensure reliable operation in high-vibration environments.
  • The TLE5010 has a digital output that can be connected to a microcontroller's I/O pins. Infineon provides example code and interface guidelines in the application note AN201709 'TLE5010 Microcontroller Interface' to help with integration.
