TLE5011 - Infineon

Description: Board Mount Hall Effect / Magnetic Sensors GMR Angle Sensor

Download TLE5011 Model

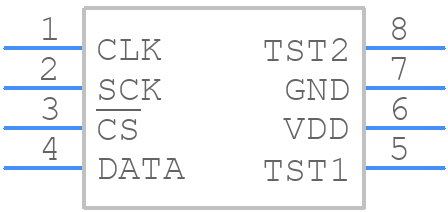

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE5011 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLE5011
click to zoom
3D Models
TLE5011 - Infineon  - 3D model - Small Outline Packages - TLE5011
click to zoom

TLE5011 Details

  • Manufacturer Part Number:

    TLE5011

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    CMOS COMPATIBLE

  • Body Breadth:

    4 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    5 mm

  • Housing:

    PLASTIC

  • Hysteresis:

    30 mT

  • JESD-609 Code:

    e3

  • Magnetic Field Range-Max:

    70 mT

  • Magnetic Field Range-Min:

    30 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    20 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    -10 mA

  • Output Interface Type:

    SSC INTERFACE

  • Output Range:

    0.40-0.70V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,MAGNETORESISTIVE

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

TLE5011 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN201706 'TLE5011 - PCB Layout Recommendations' which includes guidelines for component placement, routing, and thermal management.
  • The TLE5011 has an internal calibration mechanism, but it may require external calibration for high-accuracy applications. Infineon provides a calibration guide in the application note AN201707 'TLE5011 - Calibration Guide' which includes step-by-step instructions and software tools.
  • The TLE5011 has an operating temperature range of -40°C to 150°C, but the accuracy and reliability of the device may be affected at extreme temperatures. It's recommended to consult the datasheet and application notes for specific temperature-related considerations.
  • Yes, the TLE5011 is designed to operate in high-vibration environments, but it's essential to ensure proper PCB mounting and mechanical fixation to prevent damage or malfunction. Infineon provides guidelines for vibration testing and mechanical design in the application note AN201708 'TLE5011 - Vibration Testing and Mechanical Design'.
  • The TLE5011 has a digital output that can be connected to a microcontroller's digital input. Infineon provides example code and interface guidelines in the application note AN201709 'TLE5011 - Microcontroller Interface' which includes information on communication protocols, data formats, and error handling.
