The recommended PCB layout for the TLE52052GAUMA1 can be found in the Infineon application note AN2013-01, which provides guidelines for PCB design and layout to ensure optimal performance and thermal management.
The input capacitor selection depends on the input voltage, output voltage, and switching frequency. A general guideline is to choose a capacitor with a capacitance value between 10uF to 22uF, and a voltage rating of at least 1.5 times the input voltage. The capacitor should also have a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
The maximum ambient temperature for the TLE52052GAUMA1 is 105°C, as specified in the datasheet. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
Yes, the TLE52052GAUMA1 is suitable for high-reliability applications, such as automotive and industrial systems. It meets the requirements of the AEC-Q100 standard for automotive applications and is also compliant with the IEC 60747-1 standard for general electronic components.
To troubleshoot issues with the TLE52052GAUMA1, start by checking the input voltage, output voltage, and switching frequency. Verify that the device is properly soldered and that the PCB layout meets the recommended guidelines. Use an oscilloscope to measure the voltage and current waveforms, and consult the datasheet and application notes for troubleshooting guides.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE52052GAUMA1 Overview

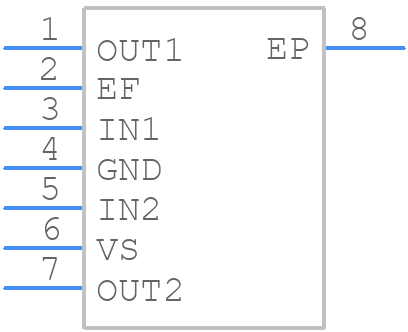

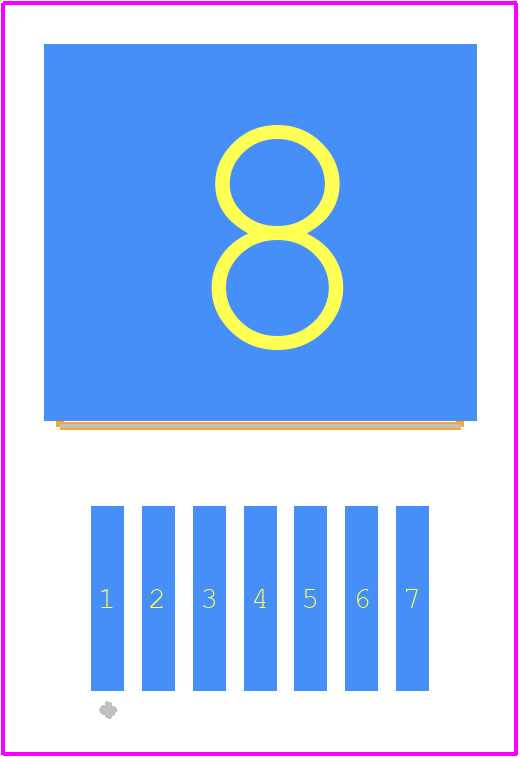

Use the download button to access the TLE52052GAUMA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE52,
or try a keyword search, such as Motion Control Electronics
