TLE52062GAUMA1 - Infineon

Description: Infineon TLE52062GAUMA1, BLDC DC Motor Driver, 40 V 5A 7-Pin, TO-263

Download TLE52062GAUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

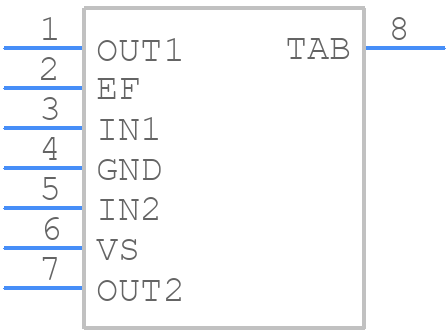

TLE52062GAUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

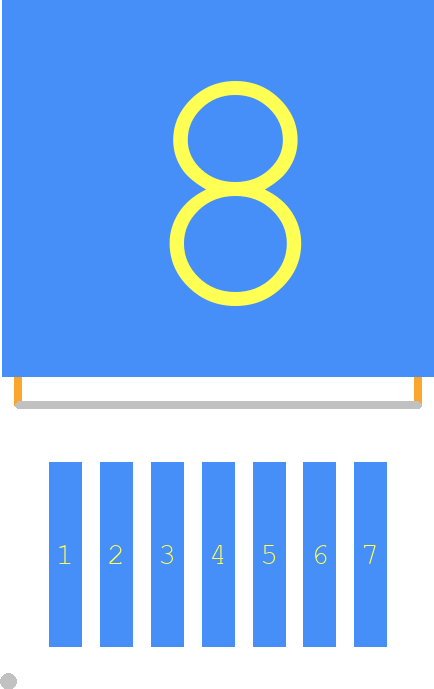

TLE52062GAUMA1 - Infineon PCB footprint - Other - Other - PG-TO263-7
click to zoom
3D Models
TLE52062GAUMA1 - Infineon - 3D model - Other - PG-TO263-7
click to zoom

TLE52062GAUMA1 Details

  • Manufacturer Part Number:

    TLE52062GAUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, PLASTIC, TO-263, 7 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    UNDERVOLTAGE LOCKOUT

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Equivalence Code:

    SMSIP7H,.55,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    13.2 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Width:

    9.25 mm

TLE52062GAUMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TLE52062GAUMA1 is to use a 4-layer PCB with a solid ground plane, and to keep the high-current paths as short as possible. Additionally, it's recommended to use a common ground point for the input and output stages.
  • To ensure proper cooling, it's recommended to attach a heat sink to the device, and to provide adequate airflow around the device. The thermal resistance of the heat sink should be as low as possible, and the heat sink should be attached using a thermal interface material.
  • The maximum allowed voltage drop across the TLE52062GAUMA1 is 40V. Exceeding this voltage drop may cause damage to the device.
  • To protect the TLE52062GAUMA1 from overcurrent, it's recommended to use an external current sense resistor and a fuse or a current limiting circuit. Additionally, the device has a built-in overcurrent protection feature that will limit the output current in case of an overload.
  • The recommended input capacitor value for the TLE52062GAUMA1 is 10uF to 22uF, with a voltage rating of at least 50V. The capacitor should be placed as close as possible to the device's input pins.
