TLE6209R - Infineon

Description: DC Motor Driver,H-Bridge 7A DMOS SO20 Infineon TLE6209R Motor Driver,, DC Motor Management, 20-Pin DSO-20-37

Download TLE6209R Model

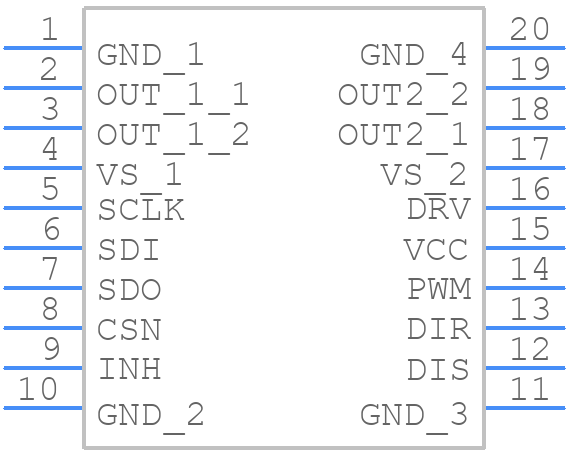

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE6209R - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLE6209R-1
click to zoom
3D Models
TLE6209R - Infineon  - 3D model - Small Outline Packages - TLE6209R-1
click to zoom

TLE6209R Details

  • Manufacturer Part Number:

    TLE6209R

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    ALSO NEEDS A SUPPLY OF 4.75 TO 5.25V

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Current-Max:

    7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.5 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    5.2 V

  • Supply Voltage-Nom (Vsup):

    13.2 V

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    11 mm

TLE6209R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLE6209R is -40°C to 150°C.
  • To ensure EMC, follow proper PCB design guidelines, use a common mode choke, and add a capacitor to the output stage. Additionally, ensure proper shielding and grounding of the device.
  • Place the TLE6209R close to the power source, use a star-grounding configuration, and keep the input and output stages separate to minimize noise and EMI.
  • Use a thermal imaging camera to detect overheating, check for proper PCB layout and component placement, and verify the input voltage and current ratings. Also, check for any signs of physical damage or contamination.
  • Yes, the TLE6209R is suitable for high-reliability and safety-critical applications, such as automotive and industrial systems, due to its high temperature range, low quiescent current, and built-in protection features.
