A good PCB layout for the TLE6232GP involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common-mode choke and a shielded cable to reduce EMI.
The sense resistor value depends on the desired current limit and the voltage drop across the resistor. A good starting point is to choose a sense resistor value that results in a voltage drop of around 0.5-1.5V at the maximum current limit. The datasheet provides a formula to calculate the sense resistor value based on the desired current limit and voltage drop.
The maximum junction temperature of the TLE6232GP is 150°C. It's essential to ensure that the device operates within the recommended temperature range to prevent overheating and ensure reliable operation.
While the TLE6232GP can operate up to 150°C, it's not recommended to use it in high-temperature environments without proper heat sinking and thermal management. The device's performance and reliability may degrade at high temperatures, and it's essential to consider the thermal design and heat dissipation in the system.
The TLE6232GP has built-in overvoltage protection, but it's still recommended to add external protection circuitry to protect the device from overvoltage and undervoltage conditions. A voltage regulator or a transient voltage suppressor can be used to regulate the input voltage and prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE6232GP Overview

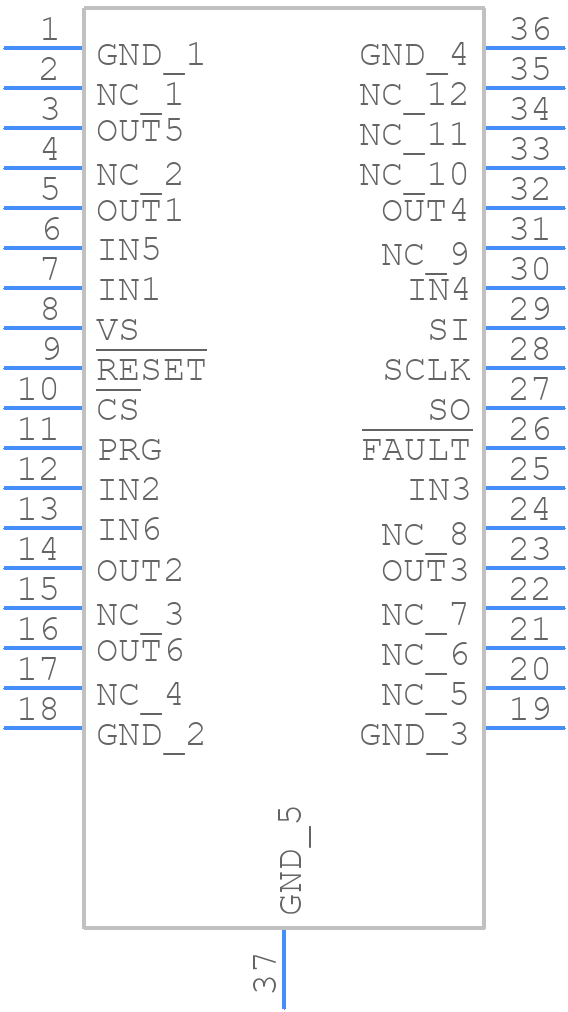

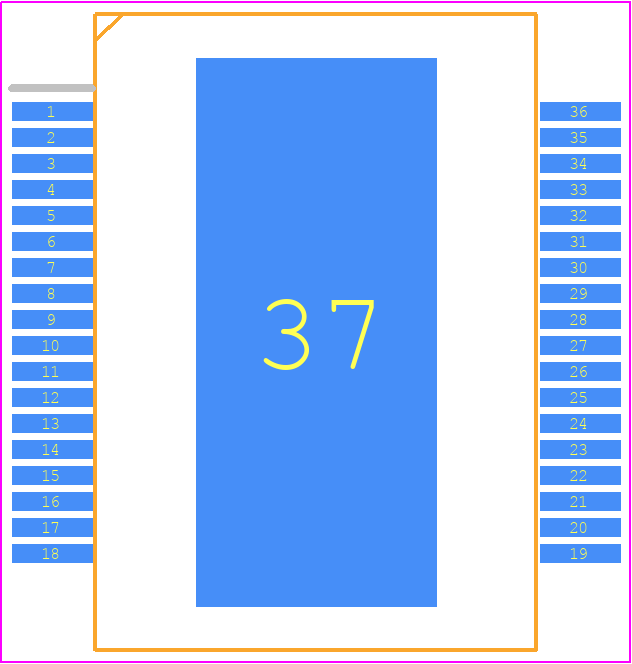

Use the download button to access the TLE6232GP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE62,
or try a keyword search, such as Power Management Circuits
