TLE6251-3G - Infineon

Description: Infineon TLE6251-3G, CAN Transceiver 1Mbit/s 1-channel ISO 11898-5, 14-Pin DSO

Download TLE6251-3G Model

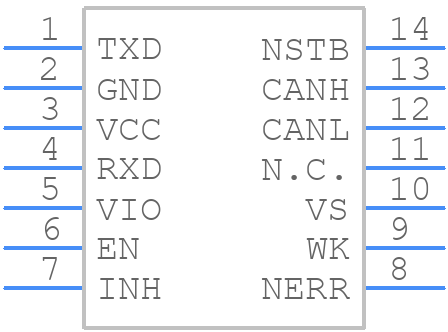

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE6251-3G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14-ren1
click to zoom
3D Models
TLE6251-3G - Infineon  - 3D model - Small Outline Packages - PG-DSO-14-ren1
click to zoom

TLE6251-3G Details

  • Manufacturer Part Number:

    TLE6251-3G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.75 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4 mm

TLE6251-3G Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and use a common mode choke to reduce EMI.
  • Use a thermal interface material (TIM) between the IC and the heat sink. Ensure good airflow around the heat sink and consider using a fan if the ambient temperature is high.
  • The maximum allowed voltage on the VCC pin is 27V, but it's recommended to keep it below 24V for reliable operation.
  • Yes, the TLE6251-3G can be used in a 24V system, but ensure the input voltage is regulated to prevent overvoltage conditions.
  • Check the power supply voltage, ensure proper decoupling, and verify the input signals. Use an oscilloscope to check the output waveforms and verify the device is not overheating.
