TLE63892GVXUMA2 - Infineon

Description: Step-Down DC/DC Controller

Download TLE63892GVXUMA2 Model

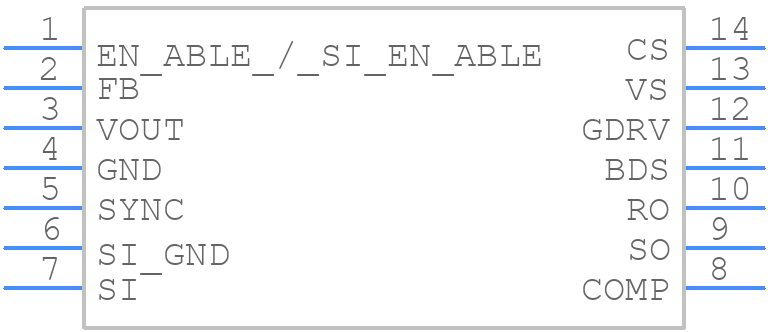

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE63892GVXUMA2 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLE63892GVXUMA2
click to zoom
3D Models
TLE63892GVXUMA2 - Infineon  - 3D model - Small Outline Packages - TLE63892GVXUMA2
click to zoom

TLE63892GVXUMA2 Details

  • Manufacturer Part Number:

    TLE63892GVXUMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES WITH PFM CONTROL TECHNIQUE; ALSO OPERATES IN ADJUSTABLE MODE FROM 7V TO 15V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    13.5 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.75 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    360 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

TLE63892GVXUMA2 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components.
  • To ensure EMC, use a shielded cable for the output stage, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead to filter out electromagnetic interference.
  • The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 35V to ensure reliable operation and prevent damage to the device.
  • Use a voltage regulator or a voltage supervisor to regulate the input voltage and prevent overvoltage or undervoltage conditions. You can also add a voltage clamp or a zener diode to protect the device from voltage spikes.
  • The recommended operating temperature range for the TLE63892GVXUMA2 is -40°C to 150°C, but it's recommended to keep the junction temperature below 125°C for reliable operation.
