TLE7181EM - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers DRIVER_IC

Download TLE7181EM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

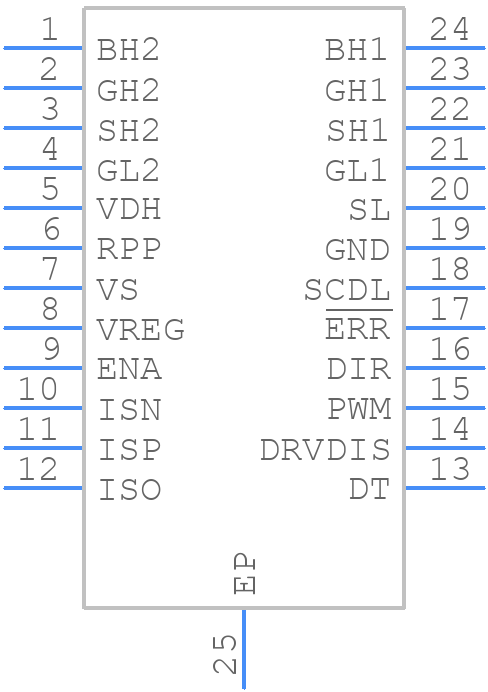

TLE7181EM - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-SSOP24 -2020
click to zoom
3D Models
TLE7181EM - Infineon  - 3D model - Small Outline Packages - PG-SSOP24 -2020
click to zoom

TLE7181EM Details

  • Manufacturer Part Number:

    TLE7181EM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Package Description:

    GREEN, PLASTIC, SSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TLE7181EM Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLE7181EM is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources.
  • A recommended PCB layout for the TLE7181EM includes a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor close to the device.
  • Overvoltage and undervoltage protection can be achieved using voltage regulators, TVS diodes, and/or zener diodes.
  • The recommended input capacitor value for the TLE7181EM is 10uF to 22uF, depending on the specific application and operating conditions.
