Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
The input capacitor selection depends on the input voltage, output current, and operating frequency. A general guideline is to choose a capacitor with a capacitance value between 10uF to 22uF, and a voltage rating of at least 1.5 times the input voltage. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to minimize voltage ripple.
The maximum allowed voltage drop across the internal switch is not explicitly stated in the datasheet. However, according to Infineon's application note AN2019-01, the voltage drop should be limited to 0.5V to ensure reliable operation and prevent overheating.
The TLE7183FXUMA6 is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and derate the output current accordingly to ensure reliable operation in high-temperature environments.
Infineon provides a troubleshooting guide in the application note AN2019-01, which covers common issues and their possible causes. Additionally, engineers can use oscilloscopes and thermal imaging cameras to diagnose issues and optimize the design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE7183FXUMA6 Overview

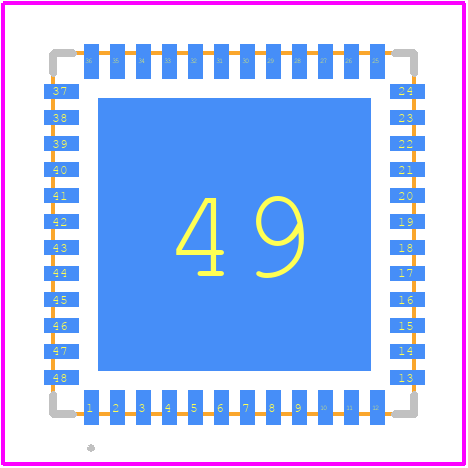

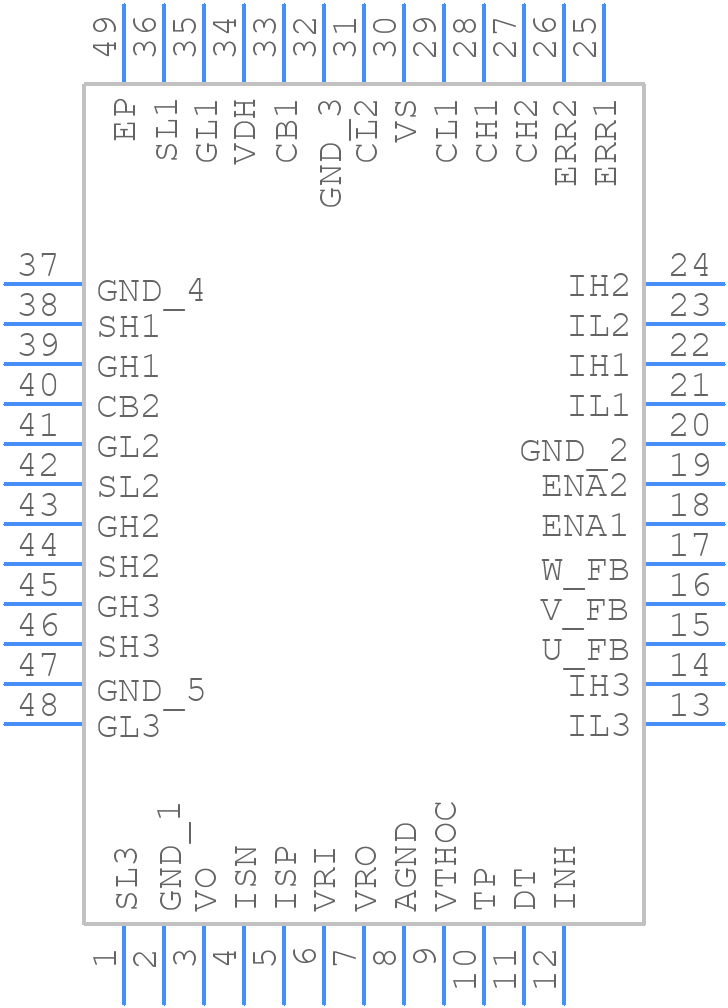

Use the download button to access the TLE7183FXUMA6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE71,
or try a keyword search, such as Motion Control Electronics
