Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating.
The maximum allowed voltage drop across the internal switch is not explicitly stated in the datasheet. However, according to Infineon's application note AN2019-01, the voltage drop should be limited to 0.5V to ensure reliable operation and prevent overheating.
The TLE7183FXUMA8 is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and derate the output current accordingly to ensure reliable operation.
Infineon provides a troubleshooting guide in the application note AN2019-01, which includes steps to identify and resolve common issues such as overvoltage, undervoltage, and overheating. Additionally, consider using a oscilloscope to analyze the input and output waveforms, and verify the component's pinout and connections.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE7183FXUMA8 Overview

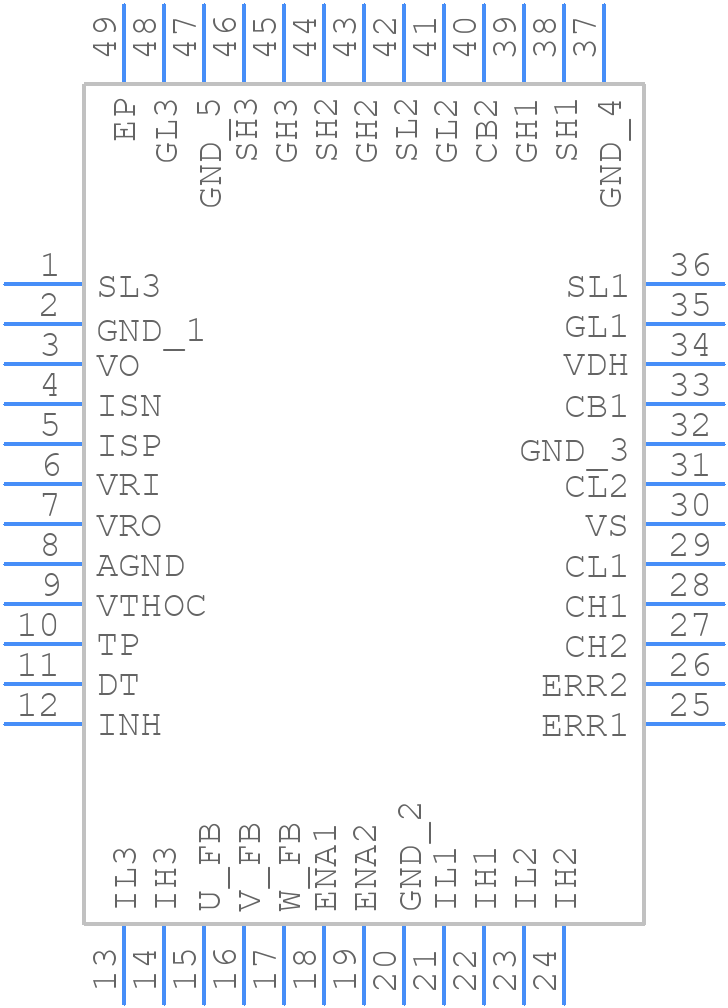

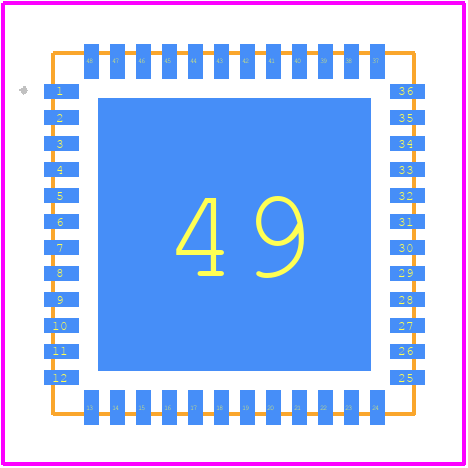

Use the download button to access the TLE7183FXUMA8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE71,
or try a keyword search, such as Motion Control Electronics
