FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
28 V
Supply Voltage-Min (Vsup):
5.5 V
Supply Voltage-Nom (Vsup):
14 V
Surface Mount:
YES
Terminal Finish:
Nickel/Gold/Palladium/Silver (Ni/Au/Pd/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
7 mm
TLE7183QU Frequently Asked Questions (FAQs)
Infineon provides a recommended PCB layout in the application note AN2019-11, which includes guidelines for thermal vias, copper thickness, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output current, and operating frequency. A general guideline is to choose a capacitor with a capacitance value between 10uF to 22uF, and a voltage rating of at least 1.5 times the input voltage. Additionally, consider the capacitor's ESR, ESL, and ripple current rating to ensure stable operation.
The maximum allowed voltage drop across the internal switches is not explicitly stated in the datasheet. However, as a general guideline, it is recommended to keep the voltage drop below 1V to ensure reliable operation and minimize power losses. Excessive voltage drop can lead to increased power dissipation, reduced efficiency, and potentially cause the device to overheat.
While the TLE7183QU is rated for operation up to 150°C, it is not recommended to operate the device above this temperature. Prolonged exposure to high temperatures can lead to reduced reliability, increased power losses, and potentially cause the device to fail. If high-temperature operation is required, consider using a different device or implementing additional cooling measures.
To troubleshoot issues with the TLE7183QU, start by reviewing the application circuit and ensuring that it meets the recommended layout and component selection guidelines. Check for proper input voltage, output current, and operating frequency. Use an oscilloscope to monitor the input and output waveforms, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE7183QU Overview

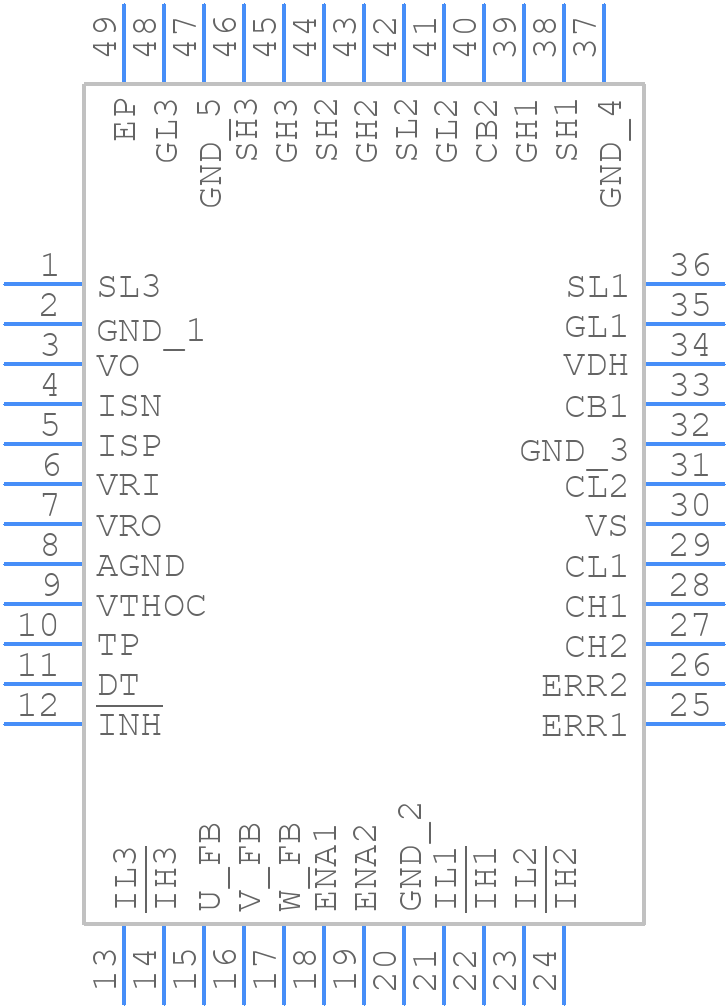

Use the download button to access the TLE7183QU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE71,
or try a keyword search, such as Motion Control Electronics
