TLE7185-1E - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers 3-Phase Bridge Driver IC

Download TLE7185-1E Model

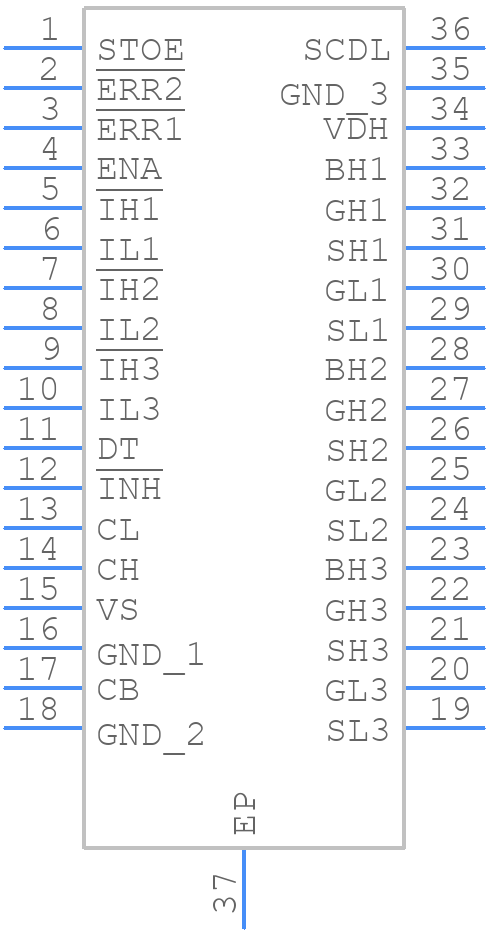

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

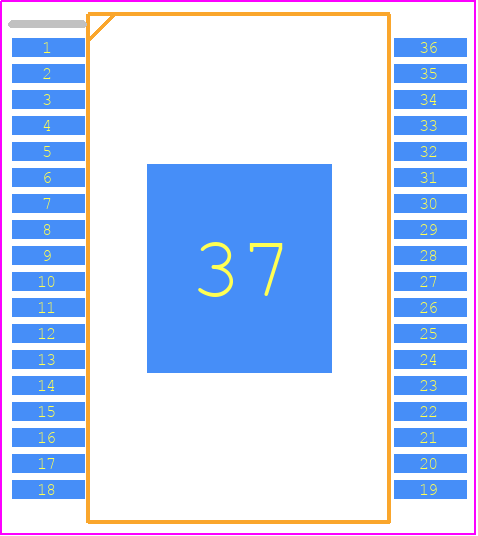

TLE7185-1E - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-36-38
click to zoom
3D Models
TLE7185-1E - Infineon  - 3D model - Small Outline Packages - PG-DSO-36-38
click to zoom

TLE7185-1E Details

  • Manufacturer Part Number:

    TLE7185-1E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, DSO-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.6 mm

TLE7185-1E Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2019-11, which includes guidelines for thermal vias, copper thickness, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, temperature rating, and ripple current capability.
  • The maximum allowed voltage drop across the internal resistance (Rds(on)) is dependent on the operating conditions and the specific application. As a general guideline, the voltage drop should be limited to 1V or less to ensure reliable operation and minimize power losses. Consult the datasheet and application notes for more information.
  • The TLE7185-1E is rated for operation up to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. Ensure that the device is properly cooled, and consider derating the current and voltage ratings at higher temperatures to prevent thermal runaway and ensure reliable operation.
  • Start by reviewing the application circuit and PCB layout to ensure they meet the recommended guidelines. Check the input voltage, current, and temperature ratings, and verify that the device is properly cooled. Use oscilloscopes and thermal imaging tools to diagnose issues, and consult the datasheet, application notes, and Infineon's support resources for further guidance.
