Part Image

TLE72092RAUMA4 - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers PWTRN H-BRIDGES

Download TLE72092RAUMA4 Model

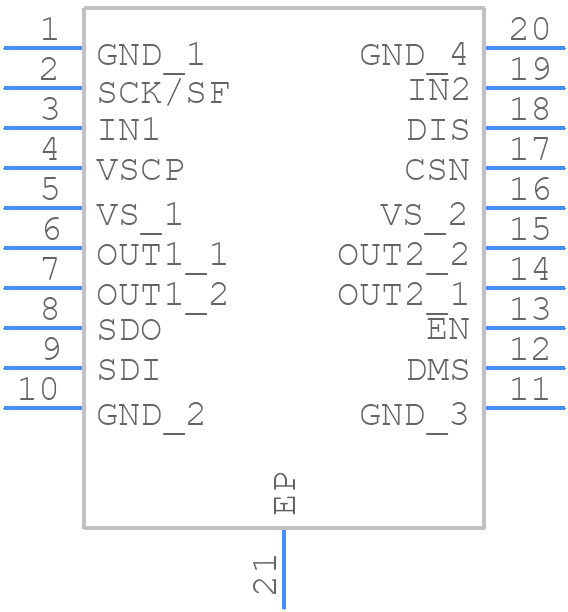

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

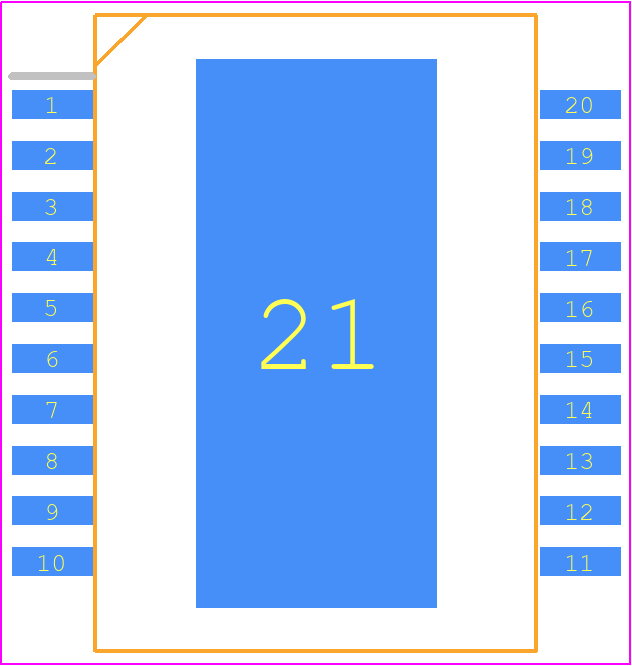

TLE72092RAUMA4 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-20-37, -65
click to zoom
3D Models
TLE72092RAUMA4 - Infineon  - 3D model - Small Outline Packages - PG-DSO-20-37, -65
click to zoom

TLE72092RAUMA4 Details

  • Manufacturer Part Number:

    TLE72092RAUMA4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    GREEN, PLASTIC, DSO-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    3.5 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    11 mm

TLE72092RAUMA4 Frequently Asked Questions (FAQs)

  • A good thermal design should be used to ensure optimal heat dissipation. A minimum of 2oz copper thickness is recommended, and thermal vias should be placed under the device to dissipate heat efficiently.
  • To ensure EMC, follow proper PCB design guidelines, use a common mode choke, and add a shield around the device. Additionally, ensure that the device is properly decoupled and filtered.
  • The maximum allowed voltage on the input pins is 5.5V. Exceeding this voltage may damage the device.
  • Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage, input signal integrity, and output load conditions. Consult the datasheet and application notes for troubleshooting guidelines.
  • The TLE72092RAUMA4 is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for thermal derating guidelines.
