- Part Number TLE7258LEXUMA1
- Manufacturer Infineon
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - PG-TSON-8
- Released Date Nov 21, 2023
- Last Modified Date Nov 21, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
TLE7258LEXUMA1 Details
-
Manufacturer Part Number:
TLE7258LEXUMA1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
26 Weeks
-
Manufacturer:
Infineon Technologies AG
-
JESD-609 Code:
e3
-
Moisture Sensitivity Level:
2A
-
Terminal Finish:
Tin (Sn)
TLE7258LEXUMA1 Frequently Asked Questions (FAQs)
-
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal via array can help to dissipate heat efficiently.
-
To ensure EMC, use a shielded cable for the output stage, keep the PCB layout compact, and use a common mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, follow good PCB design practices, such as separating analog and digital grounds, and using a solid ground plane.
-
The maximum safe operating area (SOA) for the TLE7258LEXUMA1 is typically defined by the device's thermal and electrical limitations. The SOA is usually represented as a graph of voltage versus current, and it's essential to operate the device within this area to prevent damage or degradation.
-
To troubleshoot issues with the TLE7258LEXUMA1, start by checking the device's operating conditions, such as voltage, current, and temperature. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to monitor the device's output and input signals, and check for any signs of electrical overstress or thermal overload.
-
Recommended test and measurement procedures for the TLE7258LEXUMA1 include using a curve tracer or a source measure unit (SMU) to characterize the device's electrical behavior, and using a thermal camera or an infrared thermometer to measure the device's temperature. Additionally, use a logic analyzer or an oscilloscope to monitor the device's digital signals.
Trust Checks
Community Provided
System Verified
Community Approved
TLE7258LEXUMA1 Overview

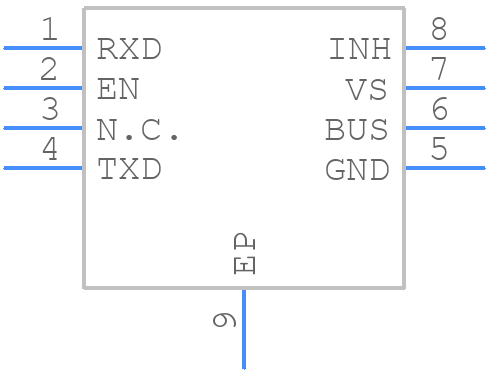

Use the download button to access the TLE7258LEXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE72,
or try a keyword search, such as Network Interfaces
