Part Image

TLE72593LEXUMA1 - Infineon

Description: LIN TRANSCEIVER SINGLE-WIRE LIN TRANSCEIVER FOR TRANSMISSION RATES UP TO 20 KBPS

Download TLE72593LEXUMA1 Model

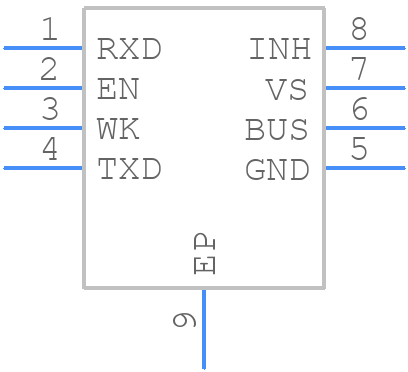

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE72593LEXUMA1 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - PG-TSON-8
click to zoom
3D Models
TLE72593LEXUMA1 - Infineon  - 3D model - Small Outline No-lead - PG-TSON-8
click to zoom

TLE72593LEXUMA1 Details

  • Manufacturer Part Number:

    TLE72593LEXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSON-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.37

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.15 mm

  • Supply Voltage-Nom:

    8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TLE72593LEXUMA1 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal via array can help to dissipate heat efficiently.
  • To ensure EMC, follow proper PCB design and layout guidelines, use a shielded enclosure, and ensure that the device is properly decoupled from the power supply. Additionally, use filters or chokes to reduce electromagnetic interference (EMI) and ensure that the device is operated within its specified frequency range.
  • Use a 4-wire Kelvin connection to measure the device's voltage and current accurately. Use a high-impedance probe to measure voltage, and a current probe or a shunt resistor to measure current. Ensure that the measurement equipment is properly calibrated and that the device is operated within its specified operating conditions.
  • Use a voltage regulator or a voltage supervisor to regulate the input voltage and prevent overvoltage or undervoltage conditions. Implement overvoltage protection (OVP) and undervoltage protection (UVP) circuits to ensure that the device operates within its specified voltage range.
  • Ensure good thermal conductivity between the device and the PCB, and use a heat sink or a thermal pad to dissipate heat efficiently. Operate the device within its specified temperature range, and avoid overheating or thermal runaway conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE72593LEXUMA1 Overview

Use the download button to access the TLE72593LEXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE72, or try a keyword search, such as Network Interfaces
