TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
8
Input Characteristics:
STANDARD
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G24
JESD-609 Code:
e3
Length:
8.65 mm
Moisture Sensitivity Level:
2A
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
OPEN-DRAIN
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
0.33 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP24,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Screening Level:
AEC-Q100
Seated Height-Max:
1.15 mm
Supply Current-Max:
4.2 mA
Supply Voltage-Max:
18 V
Supply Voltage-Min:
7 V
Supply Voltage-Nom:
13.5 V
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Turn-off Time:
35 µs
Turn-on Time:
35 µs
Width:
3.9 mm
TLE75008-ESD Frequently Asked Questions (FAQs)
A good PCB layout for the TLE75008-ESD involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
The TLE75008-ESD requires a single 3.3V or 5V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
The maximum cable length supported by the TLE75008-ESD depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 10 meters. It's recommended to use a shielded twisted-pair cable with a characteristic impedance of 100 ohms to minimize electromagnetic interference.
To troubleshoot common issues with the TLE75008-ESD, first check the power supply voltage and ensure it's within the recommended range. Verify that the input and output pins are properly connected and that there are no shorts or opens on the PCB. Use an oscilloscope to check the output voltage and verify that it's within the specified range. If the issue persists, check the device's thermal performance and ensure it's within the recommended operating temperature range.
Yes, the TLE75008-ESD has specific thermal management requirements. The device has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance. A thermal pad is recommended to improve heat dissipation, and the device should be placed on a PCB with a solid ground plane to help dissipate heat.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE75008-ESD Overview

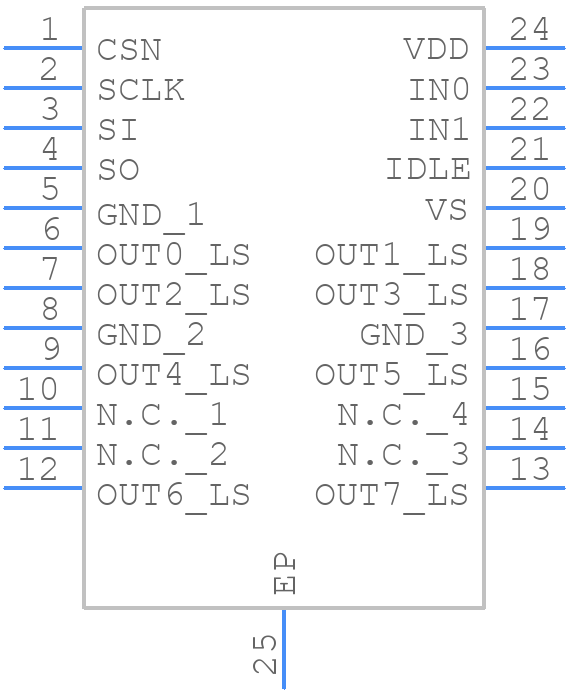

Use the download button to access the TLE75008-ESD schematic symbol, PCB footprint, and 3D model.
