TLE8108EMXUMA1 - Infineon

Description: INFINEON - TLE8108EMXUMA1 - Relay Driver, 4.5V to 5.5V Supply, 500mA Out, SSOP-24

Download TLE8108EMXUMA1 Model

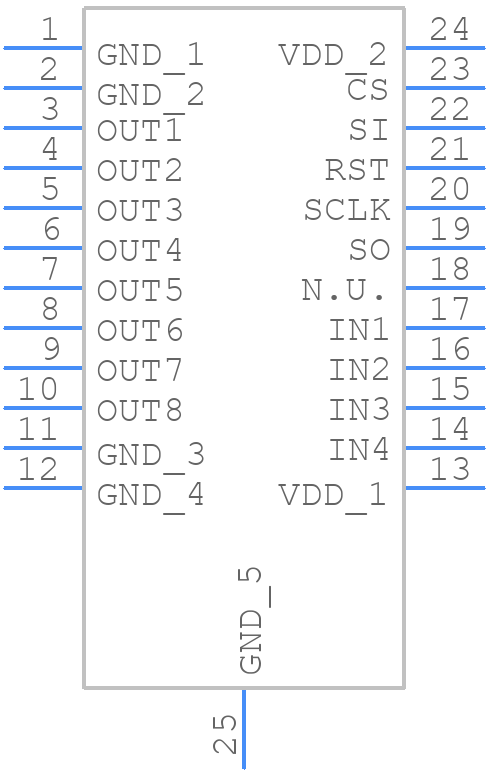

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE8108EMXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-SSOP-24_2026-1.19
click to zoom

TLE8108EMXUMA1 Details

  • Manufacturer Part Number:

    TLE8108EMXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    GREEN, PLASTIC, SSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.05

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SOURCE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    50 µs

  • Turn-on Time:

    50 µs

  • Width:

    3.9 mm

TLE8108EMXUMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TLE8108EMXUMA1 can be found in the Infineon application note AN2014-01, which provides guidelines for PCB design, component placement, and thermal management.
  • To ensure proper cooling, the TLE8108EMXUMA1 should be mounted on a heat sink with a thermal resistance of ≤ 10 K/W. Additionally, the device should be placed in a well-ventilated area, and the PCB should be designed to allow for good airflow.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • To troubleshoot issues with the TLE8108EMXUMA1, check the device's operating conditions, ensure proper power supply and decoupling, and verify that the input signals are within the specified range. If issues persist, consult the Infineon support team or a qualified engineer.
  • Yes, the TLE8108EMXUMA1 is AEC-Q100 qualified, making it suitable for use in automotive applications.
