TLE8250GVIOXUMA5 - Infineon

Description: INFINEON - TLE8250GVIOXUMA5 - CAN Bus, CAN, 4.5 V, 5.5 V, SOIC

Download TLE8250GVIOXUMA5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

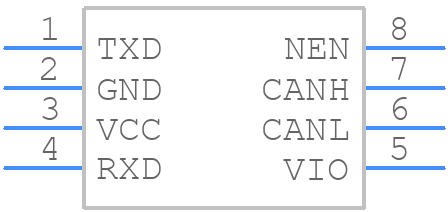

TLE8250GVIOXUMA5 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE8250GVIOXUMA5 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8 _
click to zoom
3D Models
TLE8250GVIOXUMA5 - Infineon - 3D model - Small Outline Packages - PG-DSO-8 _
click to zoom

TLE8250GVIOXUMA5 Details

  • Manufacturer Part Number:

    TLE8250GVIOXUMA5

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    GREEN, PLASTIC PACKAGE-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

TLE8250GVIOXUMA5 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal via array under the device to ensure optimal thermal performance.
  • To ensure EMC, Infineon recommends following the guidelines in the application note AN2013-01, which provides information on PCB layout, component placement, and shielding.
  • Infineon recommends a soldering profile with a peak temperature of 260°C, a dwell time above 217°C of 60-90 seconds, and a cooling rate of 4-6°C/s.
  • Infineon recommends using a systematic approach to troubleshooting, including checking the power supply, signal integrity, and PCB layout, as well as using tools such as oscilloscopes and logic analyzers.
  • Infineon recommends handling the device by the body, avoiding touching the pins, and storing the device in a dry, cool place, away from direct sunlight and moisture.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE8250GVIOXUMA5 Overview

Use the download button to access the TLE8250GVIOXUMA5 schematic symbol, PCB footprint, and 3D model.
