SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH
Seated Height-Max:
1.7 mm
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
700 kHz
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
3.9 mm
TLE83862ELXUMA1 Frequently Asked Questions (FAQs)
A good PCB layout for the TLE83862ELUMA1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The TLE83862ELXUMA1 requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the power supply has reached its nominal value.
The TLE83862ELXUMA1 has a thermal pad that must be connected to a thermal ground plane to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB. Additionally, it's recommended to use a heat sink or a thermal pad on the top of the device to further improve heat dissipation.
The TLE83862ELXUMA1 can be configured for different operating modes using the MODE pin. The device can be configured for normal operation, shutdown mode, or standby mode by setting the MODE pin to the appropriate logic level. The specific configuration depends on the application requirements.
The TLE83862ELXUMA1 has built-in ESD protection, but it's still recommended to take precautions during handling and assembly to prevent ESD damage. It's recommended to use an ESD wrist strap or mat, and to handle the device by the body rather than the pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE83862ELXUMA1 Overview

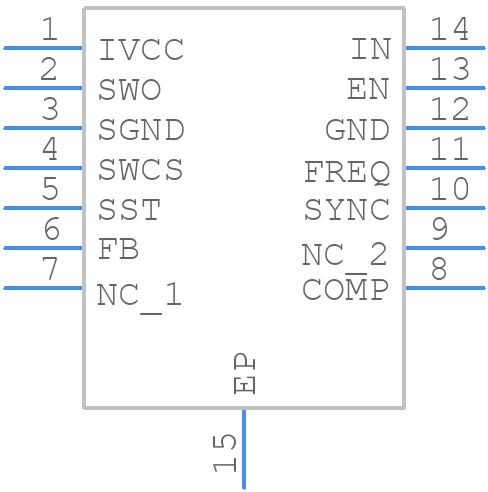

Use the download button to access the TLE83862ELXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE83,
or try a keyword search, such as Switching Regulator or Controllers
