TLE9012AQU - Infineon

Description: TLE9012AQU - SAMPLE

Download TLE9012AQU Model

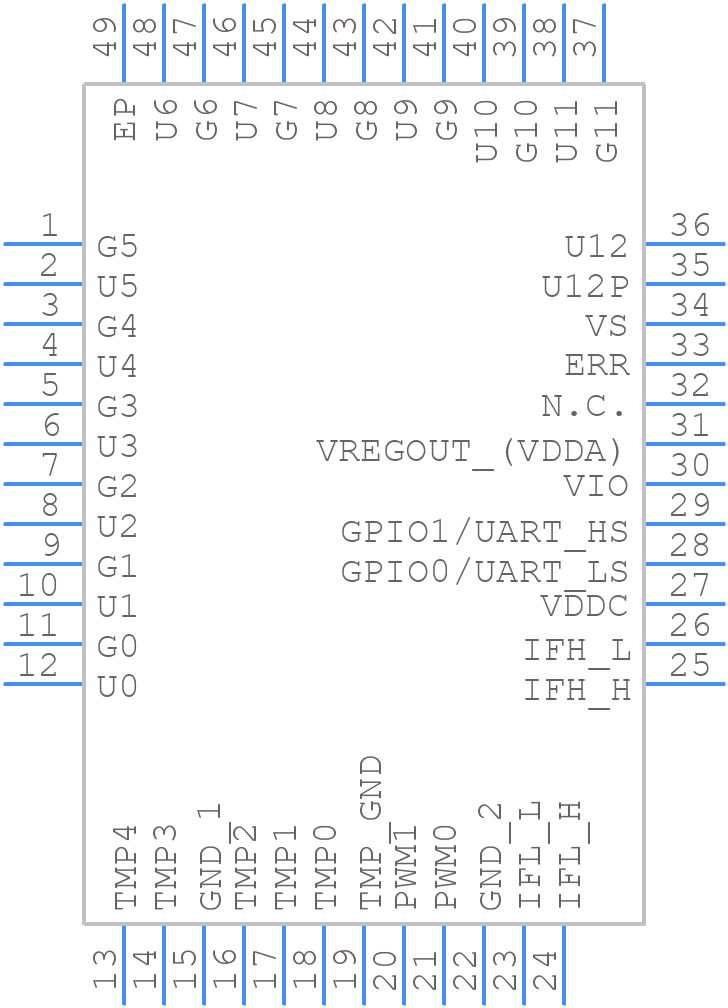

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE9012AQU - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - PG-TQFP-48
click to zoom
3D Models
TLE9012AQU - Infineon  - 3D model - Quad Flat Packages - PG-TQFP-48
click to zoom

TLE9012AQU Details

  • Manufacturer Part Number:

    TLE9012AQU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TQFP-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-06-09

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.245V

  • Width:

    7 mm

TLE9012AQU Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2019-11, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The current sense resistor (RSENSE) value depends on the maximum current and the desired current sense accuracy. A general guideline is to choose a value between 1 mΩ and 10 mΩ. Infineon provides a calculation tool and guidelines in the application note AN2019-11 to help with the selection.
  • Although the datasheet specifies a maximum VCC voltage of 5.5 V, it's recommended to keep the voltage below 5 V to ensure reliable operation and to prevent damage to the device. Infineon recommends using a voltage regulator or a voltage limiter to ensure a stable VCC voltage.
  • The TLE9012AQU has a built-in overcurrent protection feature. To implement it, connect the OCP pin to a resistor divider network that sets the overcurrent threshold. The application note AN2019-11 provides a detailed example and calculation guidelines.
  • The thermal resistance (RthJA) of the TLE9012AQU package is approximately 35 K/W. This value is not explicitly stated in the datasheet, but it can be found in the package description document or by contacting Infineon's support team.
