- Part Number TLE9015DQUXUMA1
- Manufacturer Infineon
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - TLE9015DQUXUMA1
- Released Date Jan 12, 2024
- Last Modified Date Jan 12, 2024 4:41 AM UTC
- Pinout / Pin List Click Here (Member Only)
TLE9015DQUXUMA1 Details
-
Manufacturer Part Number:
TLE9015DQUXUMA1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
TQFP-48
-
Country Of Origin:
Germany, Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
6
-
Input Characteristics:
STANDARD
TLE9015DQUXUMA1 Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The TLE9015DQUXUMA1 is a highly configurable device, and the configuration depends on the specific application requirements. Infineon provides a configuration tool, the TLE9015 Configurator, which helps to generate the necessary configuration code and settings for the device.
-
The TLE9015DQUXUMA1 has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
-
Yes, the TLE9015DQUXUMA1 is designed for safety-critical applications and meets the requirements of various safety standards, such as ISO 26262 and IEC 61508. However, it's essential to follow the safety guidelines and recommendations provided by Infineon and to perform thorough testing and validation to ensure the device meets the specific safety requirements of the application.
-
Infineon provides a troubleshooting guide in the application note AN2019-02, which covers common issues and their solutions. Additionally, engineers can use the TLE9015DQUXUMA1's built-in diagnostic features, such as the error flag and status registers, to identify and debug issues.
Trust Checks
Community Provided
System Verified
Community Approved
TLE9015DQUXUMA1 Overview

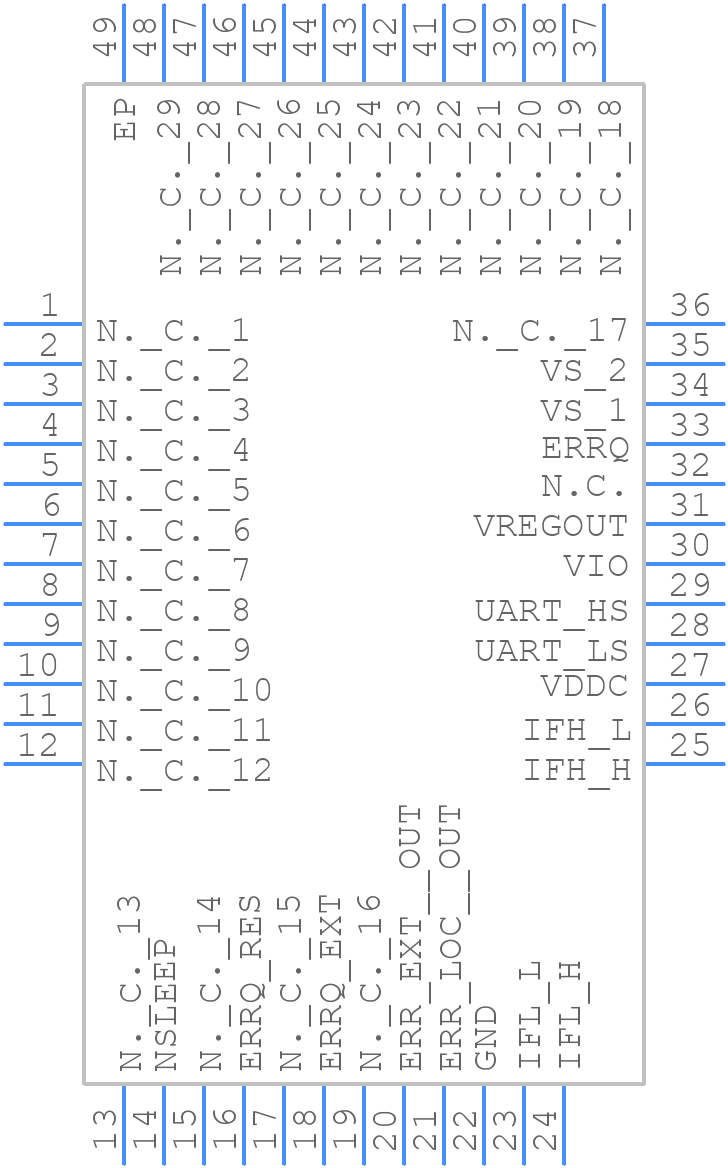

Use the download button to access the TLE9015DQUXUMA1 schematic symbol, PCB footprint, and 3D model.
