TLE9180D21QKXUMA1 - Infineon

Description: Bridge Driver IC

Download TLE9180D21QKXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

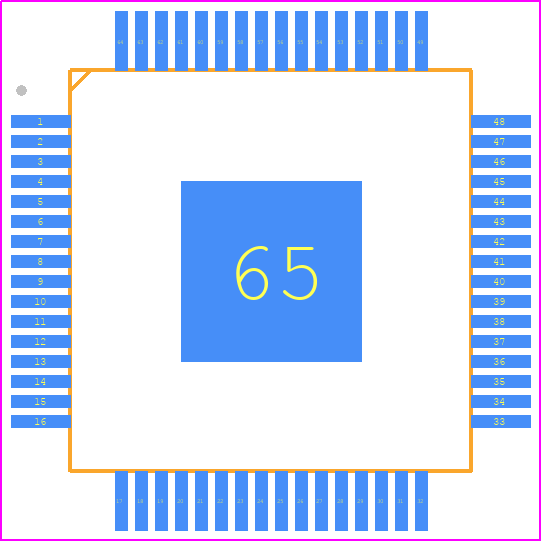

TLE9180D21QKXUMA1 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - PG-LQFP-64
click to zoom
3D Models
TLE9180D21QKXUMA1 - Infineon  - 3D model - Quad Flat Packages - PG-LQFP-64
click to zoom

TLE9180D21QKXUMA1 Details

  • Manufacturer Part Number:

    TLE9180D21QKXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-64

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    1 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

TLE9180D21QKXUMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TLE9180D21QKXUMA1 can be found in the Infineon application note AN2018-01, which provides guidelines for PCB design, component placement, and thermal management.
  • The TLE9180D21QKXUMA1 can be configured for low-power mode by setting the EN pin to logic low, which reduces the quiescent current to approximately 10 μA. Additionally, the device can be put into shutdown mode by setting the SD pin to logic low, which reduces the current consumption to less than 1 μA.
  • The TLE9180D21QKXUMA1 has an operating temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
  • The TLE9180D21QKXUMA1 has built-in overvoltage protection (OVP) and undervoltage protection (UVP) features. The OVP feature limits the output voltage to 18 V, while the UVP feature prevents the device from operating below 6.5 V. Additionally, external protection circuits can be implemented to provide additional protection against voltage transients and surges.
  • The TLE9180D21QKXUMA1 has a maximum output current capability of 1.5 A, making it suitable for powering small to medium-sized loads in automotive and industrial applications.
