A good PCB layout for the TLE9201SG involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The sense resistor value depends on the desired current sense accuracy and the maximum current of the application. A good starting point is to choose a sense resistor value that results in a voltage drop of around 50-100 mV at the maximum current. The datasheet provides a formula to calculate the sense resistor value based on the desired current sense accuracy.
The EN (enable) pin is used to enable or disable the high-side switch of the TLE9201SG. When the EN pin is high, the high-side switch is enabled, and when it's low, the high-side switch is disabled. This pin can be used to implement a shutdown function or to reduce power consumption when the device is not in use.
The TLE9201SG has built-in overvoltage protection (OVP) and undervoltage protection (UVP) features. However, additional external protection components such as TVS diodes or Zener diodes can be used to provide additional protection against overvoltage conditions. For undervoltage protection, a voltage supervisor IC can be used to monitor the input voltage and reset the system if it falls below a certain threshold.
The TLE9201SG has an operating temperature range of -40°C to 150°C. However, the device's performance and reliability may degrade at temperatures above 125°C. It's recommended to operate the device within a temperature range of -40°C to 125°C for optimal performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE9201SG Overview

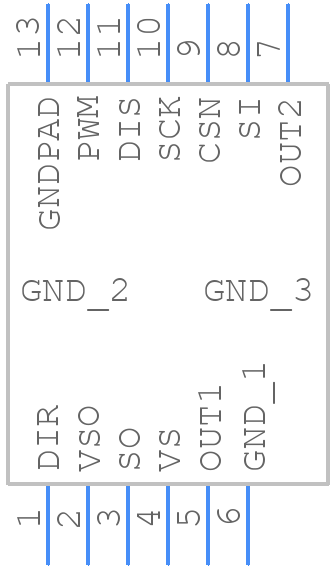

Use the download button to access the TLE9201SG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE92,
or try a keyword search, such as Motion Control Electronics
