Part Image

TLE9202EDXUMA1 - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers PWTRN_H-BRIDGES

Download TLE9202EDXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

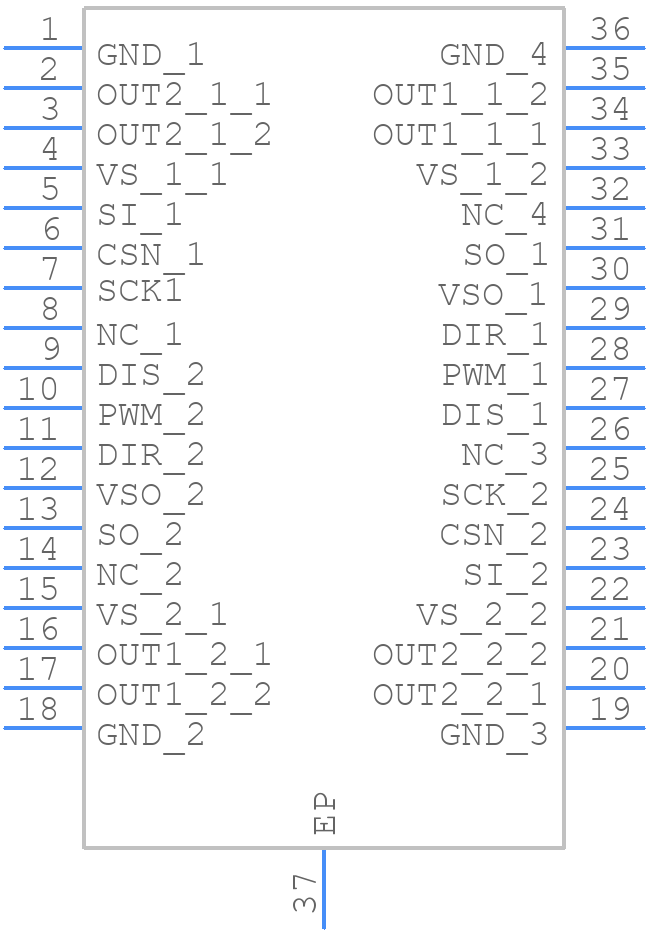

Symbol
TLE9202EDXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE9202EDXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLE9202EDXUMA1
click to zoom
3D Models
TLE9202EDXUMA1 - Infineon - 3D model - Small Outline Packages - TLE9202EDXUMA1
click to zoom

TLE9202EDXUMA1 Details

  • Manufacturer Part Number:

    TLE9202EDXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.6 mm

TLE9202EDXUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The TLE9202EDXUMA1 is a highly configurable device, and the configuration depends on the specific motor type and application requirements. Infineon provides a Motor Control Wizard tool that helps engineers configure the device for their specific motor and application.
  • The TLE9202EDXUMA1 is rated for an ambient temperature range of -40°C to 150°C, but the maximum operating temperature range depends on the specific application and cooling conditions. Engineers should consult the datasheet and application notes for more information.
  • Infineon provides a troubleshooting guide in the application note AN2019-02, which includes a step-by-step approach to identifying and resolving common issues with the TLE9202EDXUMA1. Engineers can also contact Infineon's technical support for further assistance.
  • Yes, the TLE9202EDXUMA1 is designed to meet the requirements of automotive safety standards such as ISO 26262 and IEC 61508. Engineers should consult the datasheet and application notes for more information on the device's safety features and certifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE9202EDXUMA1 Overview

Use the download button to access the TLE9202EDXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE92, or try a keyword search, such as Motion Control Electronics
