Part Image

TLE9255WSKXUMA1 - Infineon

Description: IC TRANSCEIVER FULL DSO-14

Download TLE9255WSKXUMA1 Model

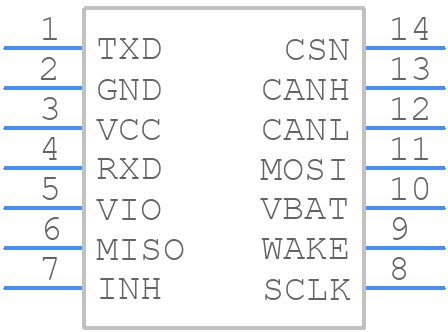

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE9255WSKXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14_2022
click to zoom
3D Models
TLE9255WSKXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-14_2022
click to zoom

TLE9255WSKXUMA1 Details

  • Manufacturer Part Number:

    TLE9255WSKXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DSO-14

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.75 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4 mm

TLE9255WSKXUMA1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLE9255WSKXUMA1 should include a solid ground plane, wide power traces, and a thermal relief pattern around the device to facilitate heat dissipation. Additionally, placing the device near a heat sink or a metal plate can help to further reduce thermal resistance.
  • To ensure proper configuration, carefully review the datasheet and application notes, and consult with Infineon's support resources if necessary. Additionally, consider using Infineon's configuration tools and software development kits (SDKs) to simplify the configuration process.
  • When selecting capacitors for the TLE9255WSKXUMA1, consider the voltage rating, capacitance value, and equivalent series resistance (ESR) to ensure stable operation and minimize noise. X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended.
  • To troubleshoot issues with the TLE9255WSKXUMA1, start by reviewing the datasheet and application notes, and checking the PCB layout and component selection. Use oscilloscopes and logic analyzers to debug the device's behavior, and consult with Infineon's support resources if necessary.
  • In high-temperature environments, ensure the TLE9255WSKXUMA1 is properly heat-sinked, and consider using thermal interface materials (TIMs) to reduce thermal resistance. Additionally, follow Infineon's guidelines for operating temperature ranges and derating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE9255WSKXUMA1 Overview

Use the download button to access the TLE9255WSKXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE92, or try a keyword search, such as Network Interfaces
