A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and wide, and use vias to connect the power planes to the device pins.
Use the Infineon Config Wizard tool to generate a configuration file that meets your specific requirements. The tool provides a graphical user interface to select the desired settings and generates a configuration file that can be loaded into the device.
The maximum current rating for the TLE9262QX is 10A. Ensure you don't exceed it by calculating the maximum current required by your application and selecting the appropriate current sense resistors. Also, use thermal management techniques such as heat sinks and thermal interfaces to prevent overheating.
Use the built-in diagnostic features of the TLE9262QX, such as the fault register and the status register, to identify the source of the issue. Also, use external tools such as oscilloscopes and logic analyzers to monitor the device's signals and communication protocols.
Yes, the TLE9262QX can be used in safety-critical applications. However, it's essential to follow the safety guidelines and recommendations provided by Infineon, and to implement additional safety mechanisms such as redundant systems, error detection, and correction mechanisms.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE9262QX Overview

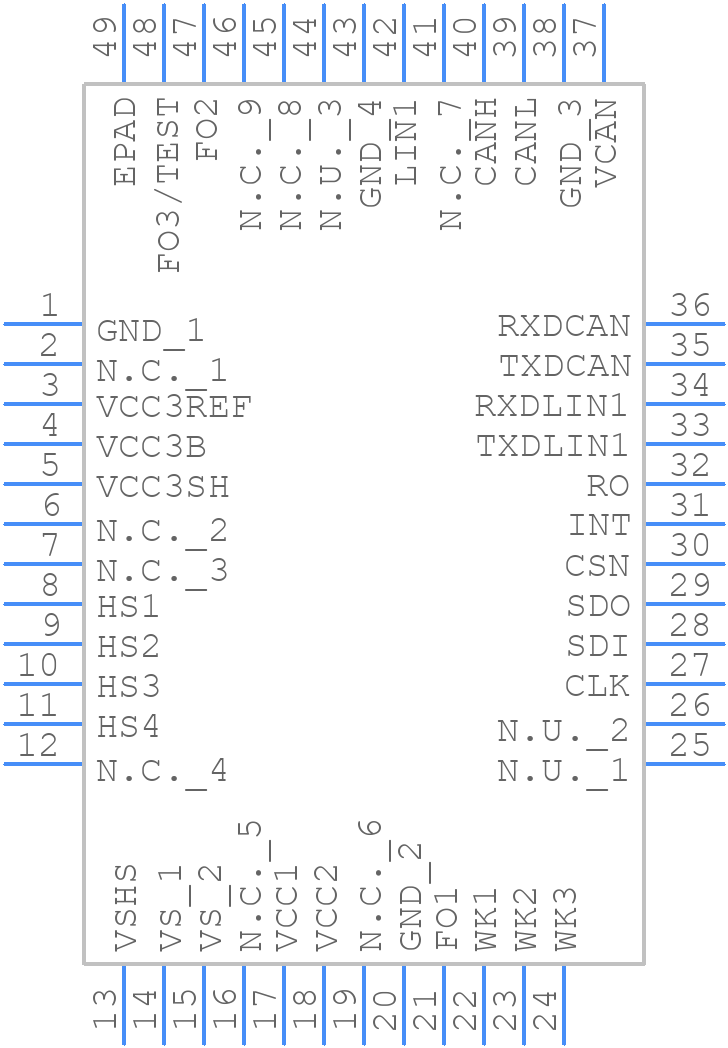

Use the download button to access the TLE9262QX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE92,
or try a keyword search, such as Power Management Circuits
