TLE9351VSJXTMA1 - Infineon

Description: CAN Interface IC IN VEHICLE NETWORK ICS

Download TLE9351VSJXTMA1 Model

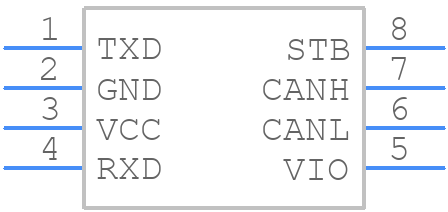

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE9351VSJXTMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLE9250VSJXUMA1
click to zoom
3D Models
TLE9351VSJXTMA1 - Infineon  - 3D model - Small Outline Packages - TLE9250VSJXUMA1
click to zoom

TLE9351VSJXTMA1 Details

  • Manufacturer Part Number:

    TLE9351VSJXTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    PACKAGE-8

  • Country Of Origin:

    Germany, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.93 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max:

    48 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.94 mm

TLE9351VSJXTMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal via under the IC to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the PCB.
  • Use Infineon's configuration tool, such as the 'TLE9351 Configurator', to generate a configuration file that meets your specific application requirements. This tool helps to simplify the configuration process and reduces errors.
  • Infineon recommends using X7R or X5R ceramic capacitors with a value of 100 nF to 1 μF, and a voltage rating of 10 V to 25 V, placed as close as possible to the IC's power pins.
  • Use Infineon's debugging tools, such as the 'TLE9351 Debugger', to analyze the IC's behavior and identify the root cause of the issue. Additionally, consult the datasheet and application notes for troubleshooting guidelines.
  • The TLE9351VSJXTMA1 has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and follow Infineon's thermal management guidelines to prevent overheating.
