TLE94003EPXUMA1 - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers DC_MOTOR_CONTROL

Download TLE94003EPXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

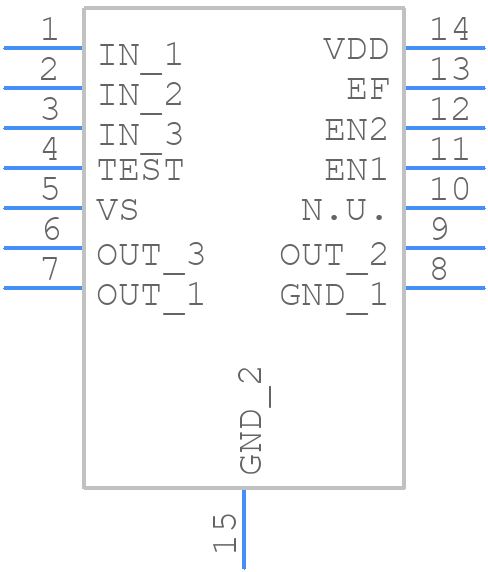

TLE94003EPXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE94003EPXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSDSO-14
click to zoom
3D Models
TLE94003EPXUMA1 - Infineon - 3D model - Small Outline Packages - PG-TSDSO-14
click to zoom

TLE94003EPXUMA1 Details

  • Manufacturer Part Number:

    TLE94003EPXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • Moisture Sensitivity Level:

    2A

TLE94003EPXUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • Infineon provides a configuration tool, the TLE94003 Configurator, which allows users to customize the device's settings for their specific application. The tool can be downloaded from the Infineon website.
  • The TLE94003EPXUMA1 is rated for operation from -40°C to 150°C, making it suitable for use in harsh automotive environments.
  • Infineon provides a troubleshooting guide in the application note AN2019-02, which includes common issues, symptoms, and solutions. Additionally, Infineon's support team can be contacted for further assistance.
  • Yes, the TLE94003EPXUMA1 is compliant with automotive safety standards such as ISO 26262 and IEC 61508, and is designed to meet the requirements of ASIL-D safety integrity level.
